236349

• Capacity (gal)
• 6000
• Lead Time
• CALL
• PSI
• 200
• Diameter (in)
• 84
• Length (in)
• 275
• Weight (lbs)
• 11500

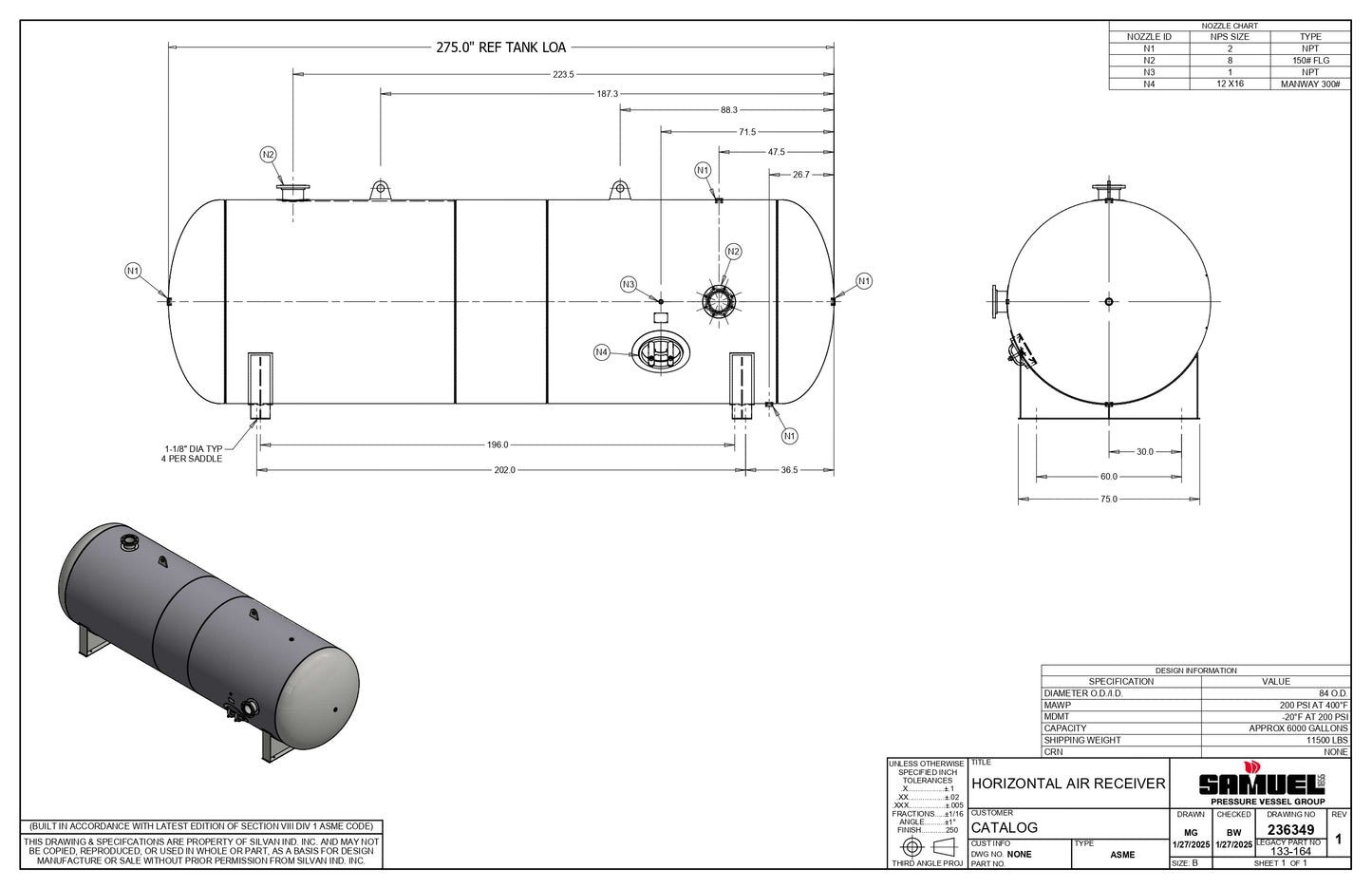

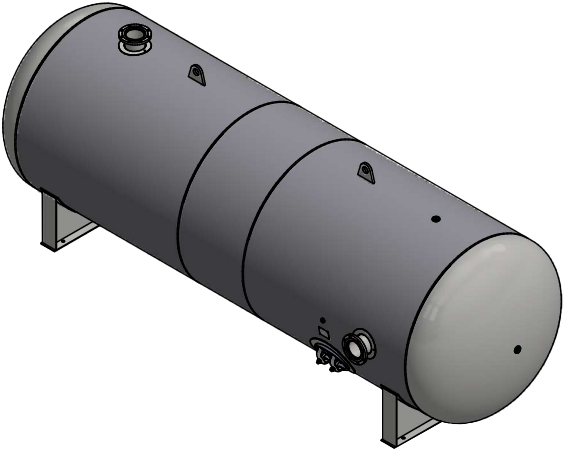

236349 Horizontal Tank

The 236349 Horizontal Tank from Samuel Pressure Vessel Group is a robust and adaptable pressure vessel designed for diverse industrial applications. This vessel features sturdy construction and customizable coatings to meet specific requirements, ensuring optimal performance in various conditions.

Key Features:

• Capacity: 6000 gallons
• Dimensions: Diameter - 84 inches, Length - 275 inches
• Pressure Rating: 200 PSI
• Weight: 11,500 lbs

Exterior Coating Options:

• Standard Primer: Universal water-based Alkyd enamel for dependable protection.
• Enamel Coating: For enhanced durability, offered in Gray, White, Black, Blue, and Custom.

Interior Coating Options:

• Unpainted
• Epoxy

Additional Specifications:

• The vessel adheres to FDA regulations for limited wet food applications at ambient temperatures.
• Customization options are available for potable water lining and other specific needs (custom part number required).

Applications:

Perfect for industries such as chemical processing, water treatment, and food processing, the 236349 Horizontal Tank offers reliability and versatility for high-performance operations.

Upgrade your industrial operations with the Samuel Pressure Vessel Group 236349 Horizontal Tank – built for performance, durability, and customization. Contact us today to learn more and place your order.
