Recommended Attachments
-
Safety Relief Valve & Pressure Gauge Kit
240/MCTK-SF50-200 -
Electronic Drain Valve
MCDV25
Need a Full System? Find a Distributor
- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 12
- Stock
- 200
- 12
- 27
- 43

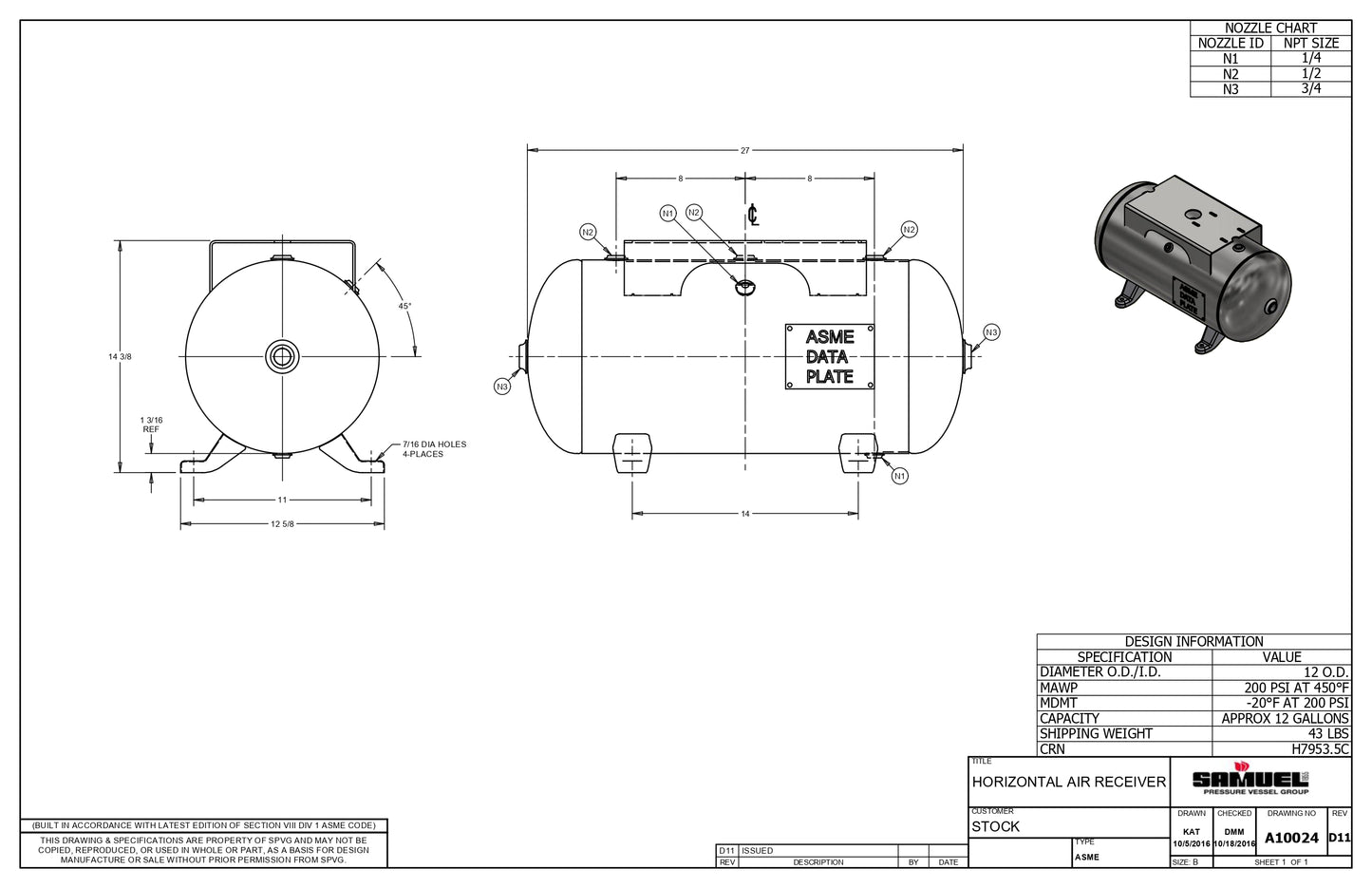

A10024 Pressure Tank
The A10024 pressure tank offers a compact design with exceptional durability, making it ideal for applications requiring smaller fluid capacities under high pressure.
Key Specifications:
- Capacity: 12 gallons
- Pressure Rating (PSI): 200
- Dimensions: 12-inch diameter, 27-inch length
- Weight: 43 lbs
- Lead Time: In stock
Exterior Finish Options:
- Standard Primer: Universal water-based alkyd enamel
- Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
- Enamel: Offered in gray, white, black, and blue
- Galvanized Finish: For enhanced corrosion resistance
Interior Finish Options:
- Unpainted
- Galvanized: Ideal for corrosion protection in demanding environments
Additional Features:
- Lightweight and easy to install in compact spaces
- Customizable finishes to match specific operational needs
- Recommended matching of interior and exterior finishes for a cohesive look
Applications:
This tank is perfectly suited for HVAC systems, plumbing setups, and other small-scale pressurized applications that require efficient and reliable performance.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 12
- Lead Time
- Stock
- PSI
- 200
- Diameter (in)
- 12
- Length (in)
- 27
- Weight (lbs)
- 43
A10024 Pressure Tank
The A10024 pressure tank offers a compact design with exceptional durability, making it ideal for applications requiring smaller fluid capacities under high pressure.
Key Specifications:
- Capacity: 12 gallons
- Pressure Rating (PSI): 200
- Dimensions: 12-inch diameter, 27-inch length
- Weight: 43 lbs
- Lead Time: In stock
Exterior Finish Options:
- Standard Primer: Universal water-based alkyd enamel
- Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
- Enamel: Offered in gray, white, black, and blue
- Galvanized Finish: For enhanced corrosion resistance
Interior Finish Options:
- Unpainted
- Galvanized: Ideal for corrosion protection in demanding environments
Additional Features:
- Lightweight and easy to install in compact spaces
- Customizable finishes to match specific operational needs
- Recommended matching of interior and exterior finishes for a cohesive look
Applications:
This tank is perfectly suited for HVAC systems, plumbing setups, and other small-scale pressurized applications that require efficient and reliable performance.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
