A10033

A10033

Color
* Recommend selecting matching colors for both interior and exterior paints.

Exterior

Standard primer

Exterior Color: Gray

Interior

Unpainted

Interior Color: Gray

* Recommend selecting matching colors for both interior and exterior paints.
Color
* Recommend selecting matching colors for both interior and exterior paints.
View full details

Recommended Attachments

  • Safety Relief Valve & Pressure Gauge Kit

    240/MCTK-SF50-200
  • Electronic Drain Valve

    MCDV25

Need a Full System? Find a Distributor

  • Capacity (gal)
  • Lead Time
  • PSI
  • Diameter (in)
  • Length (in)
  • Weight (lbs)
  • 120
  • Stock
  • 200
  • 24
  • 67
  • 316

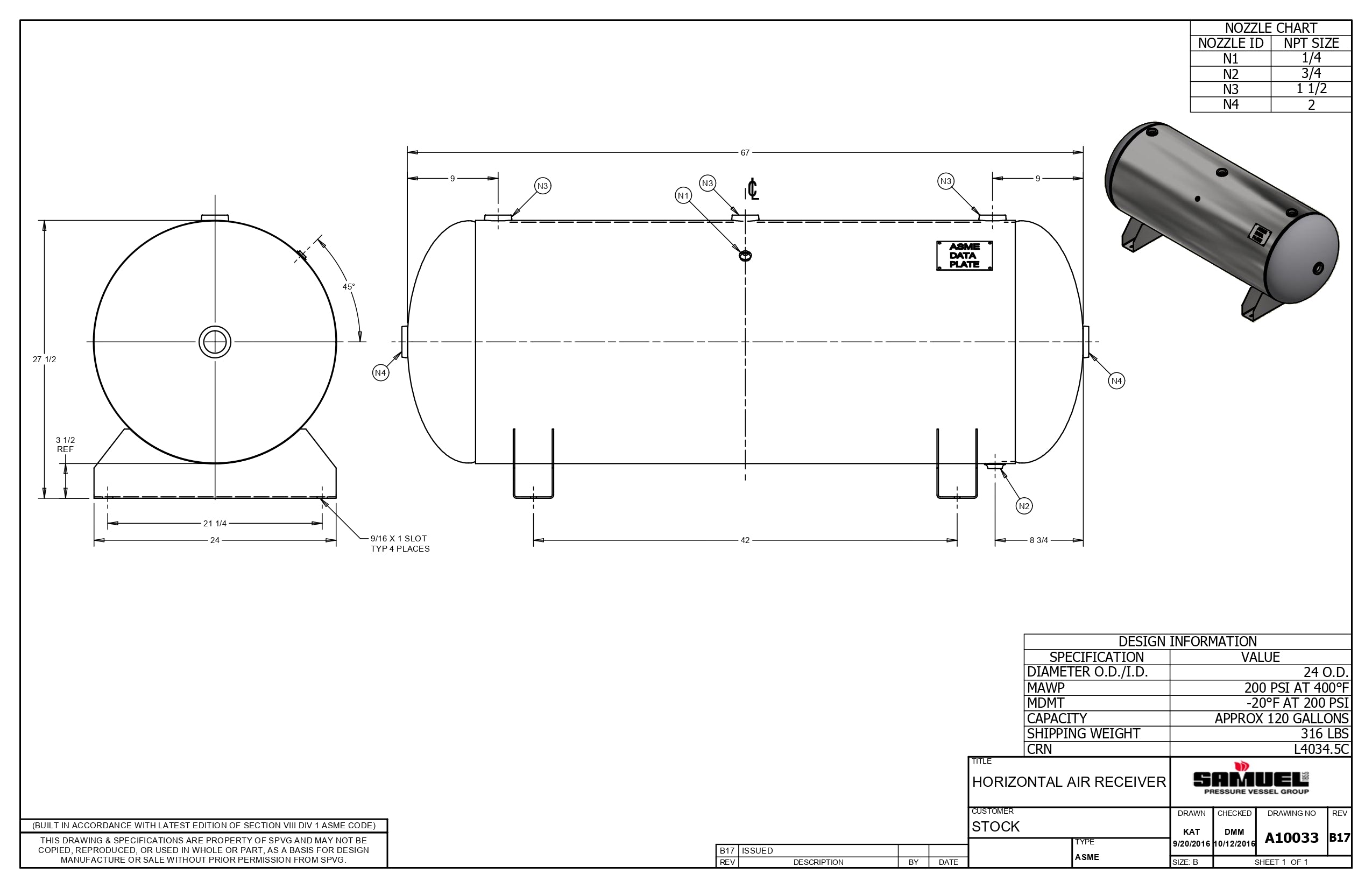

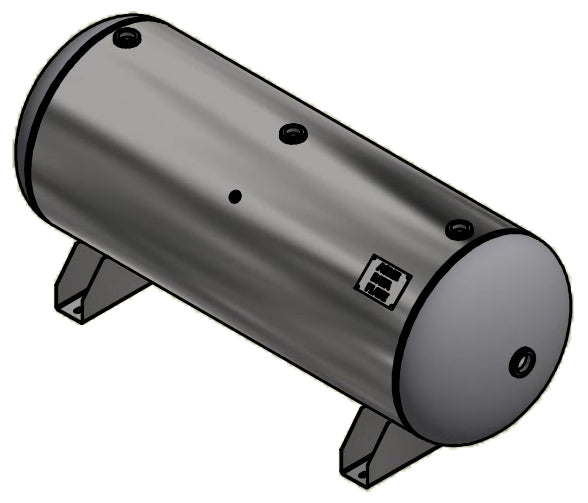

A10033 Horizontal Pressure Vessel

The A10033 horizontal pressure vessel by Samuel Pressure Vessel Group is a versatile and durable solution designed for various industrial applications. This vessel offers robust construction and customizable coatings to meet specific needs. With a range of exterior and interior coating options, it ensures efficient performance under demanding conditions.

Key Features:

  • Capacity: 120 gallons
  • Dimensions: Diameter - 24 inches, Length - 67 inches
  • Pressure Rating: 200 PSI
  • Weight: 316 lbs

Exterior Coating Options:

  • Standard Primer: Universal water-based Alkyd enamel for reliable protection.
  • Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
  • Enamel Coating: For added durability, offered in Gray, White, Black, and Blue.
  • Galvanized Finish: For superior corrosion resistance.

Interior Coating Options:

  • Unpainted: For applications requiring no interior coating.
  • Powder: For enhanced surface finish and durability.
  • Epoxy: Gray epoxy interior where applicable for corrosion resistance.
  • FDA or NSF Coating: Approved for food-grade applications under FDA Regulation 175.300 and NSF Standard 61 (requires custom part number).

Additional Specifications:

  • The vessel complies with FDA regulations for limited wet food applications at ambient temperatures.
  • Customization options are available for potable water lining and other specific requirements (custom part number required).

Applications:

Ideal for industries such as chemical processing, water treatment, and food processing, the A10033 pressure vessel offers reliability and flexibility for high-performance operations.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
