A10035

• Capacity (gal)
• 200
• Lead Time
• Call
• PSI
• 200
• Diameter (in)
• 30
• Length (in)
• 72
• Weight (lbs)
• 565

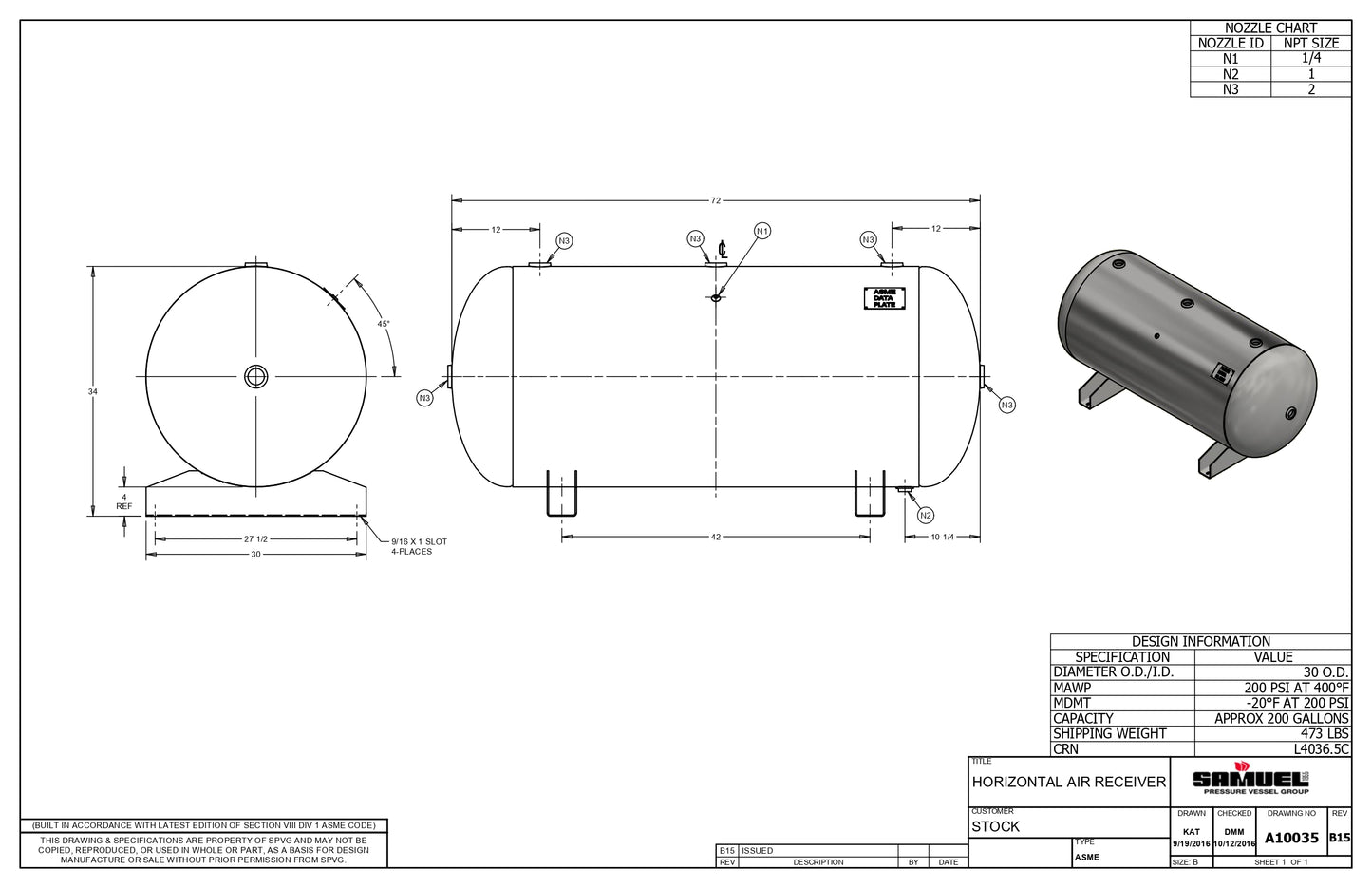

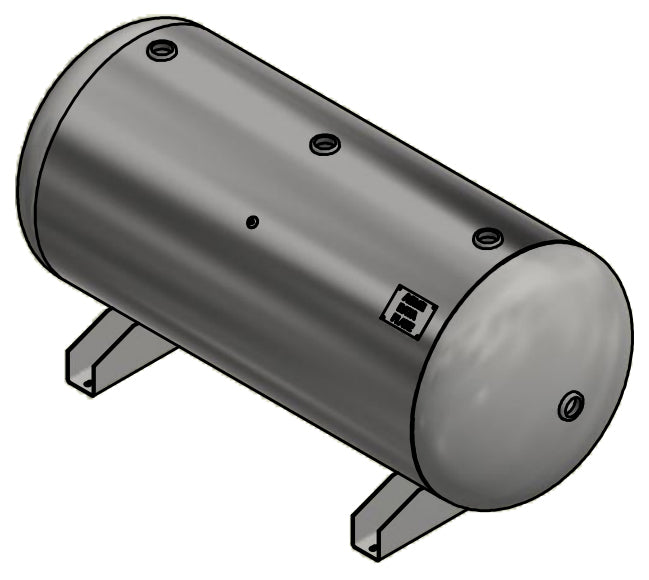

A10035 Pressure Tank

The A10035 pressure tank is engineered to provide efficient and durable solutions for pressurized fluid applications. With its robust build and versatile coating options, it caters to various industrial and commercial needs.

Key Specifications:

• Capacity: 200 gallons
• Pressure Rating (PSI): 200
• Dimensions: 30-inch diameter, 72-inch length
• Weight: 565 lbs

Exterior Finish Options:

• Standard Primer: Universal water-based alkyd enamel
• Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
• Enamel: Choices include gray, white, black, and blue
• Galvanized Finish: For superior protection against corrosion

Interior Finish Options:

• Unpainted
• Powder Coating
• Epoxy Coating: Provides resistance to chemicals and moisture
• FDA or NSF Approved Linings: Compliant with FDA Regulation 175.300 for dry food applications and NSF Standard 61 for potable water use (custom part number required)

Additional Features:

• Gray epoxy interior finish where applicable
• Matching color options recommended for seamless integration
• Customizable interior and exterior finishes for unique application needs

Applications:

This tank is ideal for plumbing, HVAC systems, and environments requiring reliable fluid pressure management and storage.

1. Standard primer - universal water based Alkyd enamel
2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
3. Interior epoxy, where offered: gray only
4. Exterior enamel in following colors: gray, white, black, blue
5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
