- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 200
- Call
- 200
- 30
- 72
- 570

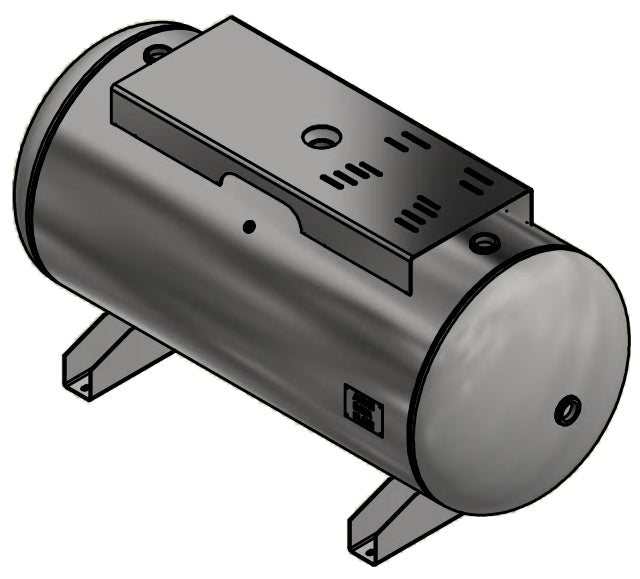

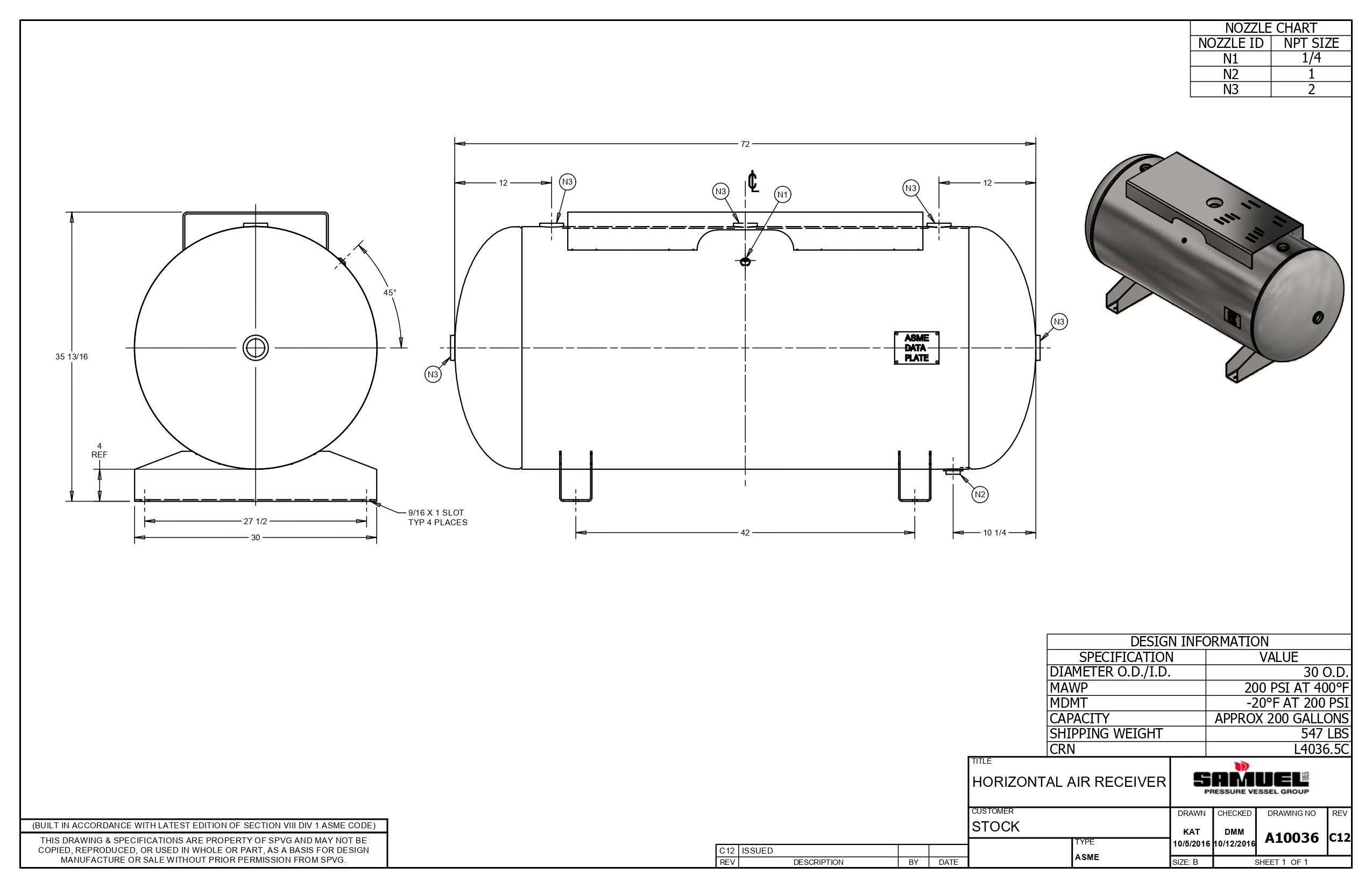

A10036 Horizontal Pressure Tank
The A10036 horizontal pressure tank is designed for compact and efficient storage solutions across industrial and commercial applications. Built with precision and durability, this tank delivers reliable performance in demanding environments.
Key Features:
- Capacity: 200 gallons
- Dimensions: Diameter - 30 inches, Length - 72 inches
- Pressure Rating: 200 PSI
- Weight: 570 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for superior base protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for added durability and corrosion resistance.
- Enamel Coating: Offers an enhanced finish in Gray, White, Black, or Blue.
- Galvanized Finish: Provides exceptional resistance in high-corrosion environments.
Interior Coating Options:
- Unpainted: Suitable for applications without interior coating requirements.
- Powder Coating: Adds a durable and smooth interior finish.
- Epoxy Lining: Offers gray epoxy coating for superior protection where required.
- FDA or NSF Coating: Complies with FDA Regulation 175.300 and NSF Standard 61, ensuring suitability for food-grade and potable water applications (custom part number required).
Additional Specifications:
- Custom Options: Fully customizable to fit specific operational needs.
- Compliance: Meets strict industry standards for food and potable water applications.
Applications:
The A10036 tank is ideal for use in industries such as HVAC, plumbing, food processing, and chemical storage. Its compact design and robust construction ensure efficient space utilization and operational compatibility.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 200
- Lead Time
- Call
- PSI
- 200
- Diameter (in)
- 30
- Length (in)
- 72
- Weight (lbs)
- 570
A10036 Horizontal Pressure Tank
The A10036 horizontal pressure tank is designed for compact and efficient storage solutions across industrial and commercial applications. Built with precision and durability, this tank delivers reliable performance in demanding environments.
Key Features:
- Capacity: 200 gallons
- Dimensions: Diameter - 30 inches, Length - 72 inches
- Pressure Rating: 200 PSI
- Weight: 570 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for superior base protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for added durability and corrosion resistance.
- Enamel Coating: Offers an enhanced finish in Gray, White, Black, or Blue.
- Galvanized Finish: Provides exceptional resistance in high-corrosion environments.
Interior Coating Options:
- Unpainted: Suitable for applications without interior coating requirements.
- Powder Coating: Adds a durable and smooth interior finish.
- Epoxy Lining: Offers gray epoxy coating for superior protection where required.
- FDA or NSF Coating: Complies with FDA Regulation 175.300 and NSF Standard 61, ensuring suitability for food-grade and potable water applications (custom part number required).
Additional Specifications:
- Custom Options: Fully customizable to fit specific operational needs.
- Compliance: Meets strict industry standards for food and potable water applications.
Applications:
The A10036 tank is ideal for use in industries such as HVAC, plumbing, food processing, and chemical storage. Its compact design and robust construction ensure efficient space utilization and operational compatibility.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
