- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 240
- Call
- 200
- 30
- 84
- 638

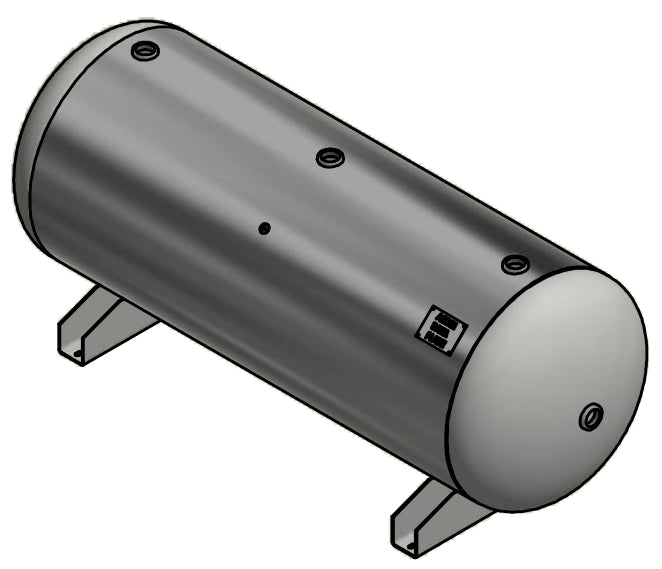

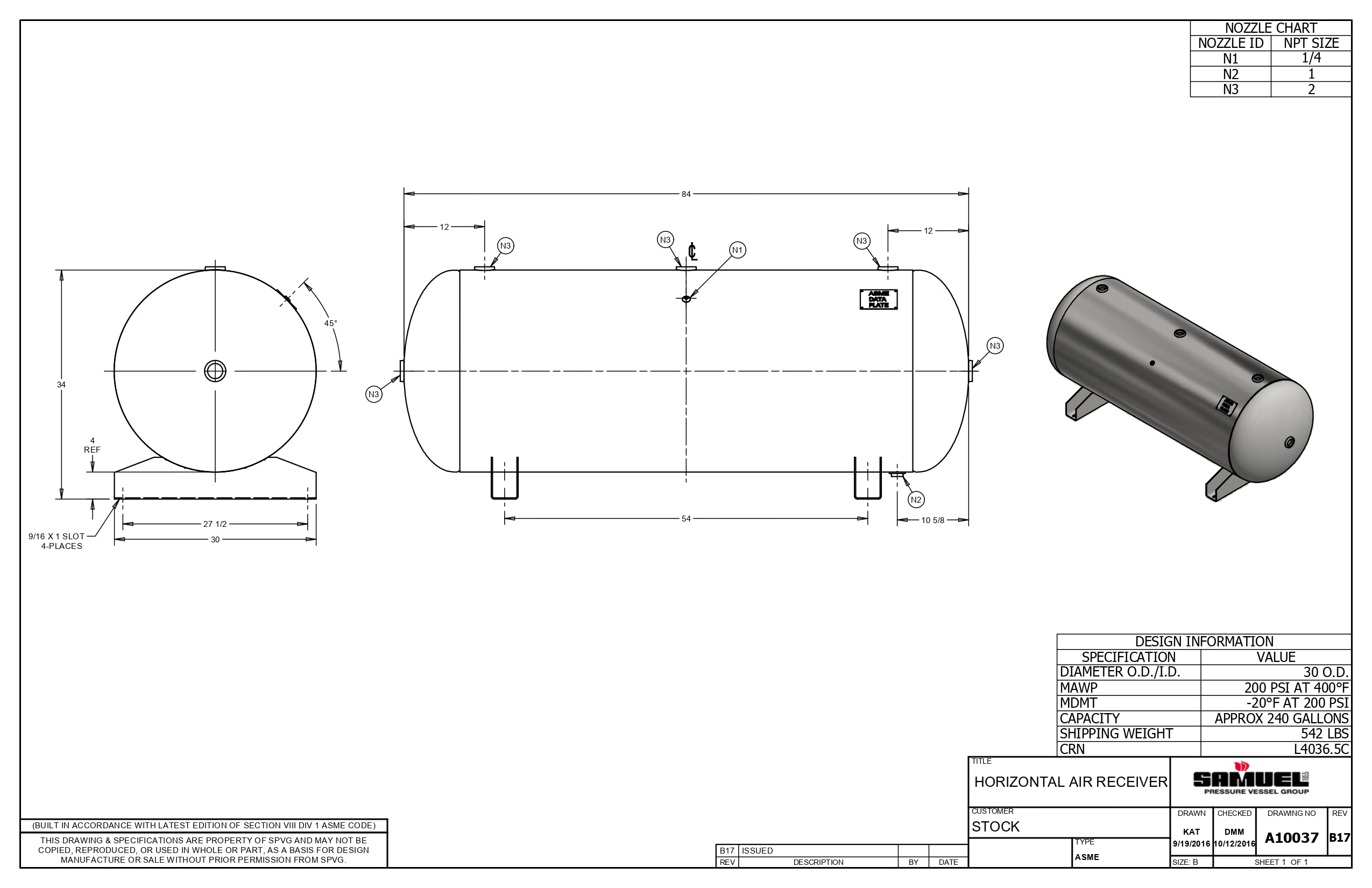

A10037 Horizontal Pressure Tank
The A10037 horizontal pressure tank offers robust and versatile performance for a range of industrial and commercial applications. Designed for efficiency and reliability, this tank is a dependable solution for your operational needs.
Key Features:
- Capacity: 240 gallons
- Dimensions: Diameter - 30 inches, Length - 84 inches
- Pressure Rating: 200 PSI
- Weight: 638 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for excellent foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability and corrosion resistance.
- Enamel Coating: Offers additional durability in Gray, White, Black, or Blue.
- Galvanized Finish: Ideal for environments requiring high corrosion resistance.
Interior Coating Options:
- Unpainted: Suitable for applications not requiring interior coatings.
- Powder Coating: Adds a smooth, durable finish.
- Epoxy Lining: Gray epoxy available where required for enhanced interior protection.
- FDA or NSF Coating: Complies with FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water use (custom part number required).
Additional Specifications:
- Custom Options: Fully customizable to meet specific operational requirements.
- Compliance: Meets industry standards for food and potable water applications.
Applications:
The A10037 tank is ideal for industries such as HVAC, plumbing, food processing, and more. Its reliable design ensures efficient storage and operational compatibility.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
