- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 240
- Call
- 200
- 30
- 84
- 622

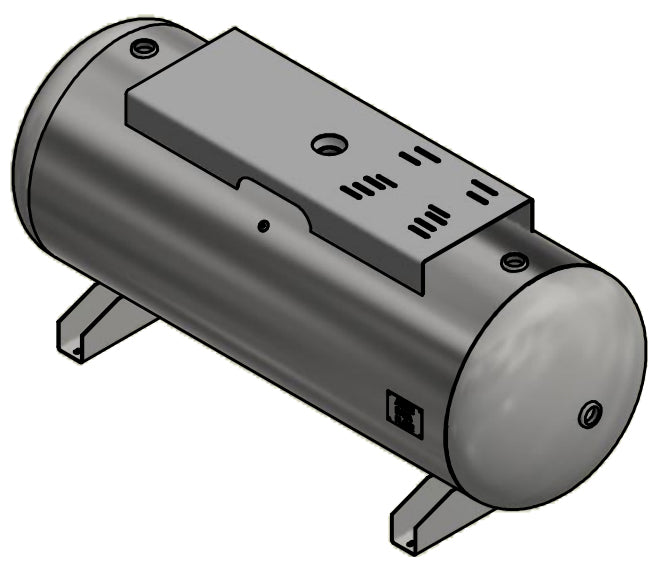

A10038 Horizontal Pressure Tank
The A10038 horizontal pressure tank is an efficient and durable solution for a wide range of industrial and commercial applications. Its compact design and customizable features ensure high performance and adaptability to diverse operational requirements.
Key Features:
- Capacity: 240 gallons
- Dimensions: Diameter - 30 inches, Length - 84 inches
- Pressure Rating: 200 PSI
- Weight: 622 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability.
- Enamel Coating: Adds resilience, offered in Gray, White, Black, and Blue.
- Galvanized Finish: Provides superior corrosion resistance for challenging environments.
Interior Coating Options:
- Unpainted: Suitable for applications where an interior coating is not required.
- Powder Coating: Offers a smooth and durable finish.
- Epoxy: Gray epoxy lining, where applicable, for enhanced protection.
- FDA or NSF Coating: Compliant with FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water applications (custom part number required).
Additional Specifications:
- Customization: Tailored configurations available for specific project needs.
- Compliance: Meets industry standards for food-grade and potable water applications.
Applications:
The A10038 pressure tank is ideal for use in HVAC, plumbing, and food processing industries, ensuring reliable performance in a compact and efficient design.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 240
- Lead Time
- Call
- PSI
- 200
- Diameter (in)
- 30
- Length (in)
- 84
- Weight (lbs)
- 622
A10038 Horizontal Pressure Tank
The A10038 horizontal pressure tank is an efficient and durable solution for a wide range of industrial and commercial applications. Its compact design and customizable features ensure high performance and adaptability to diverse operational requirements.
Key Features:
- Capacity: 240 gallons
- Dimensions: Diameter - 30 inches, Length - 84 inches
- Pressure Rating: 200 PSI
- Weight: 622 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability.
- Enamel Coating: Adds resilience, offered in Gray, White, Black, and Blue.
- Galvanized Finish: Provides superior corrosion resistance for challenging environments.
Interior Coating Options:
- Unpainted: Suitable for applications where an interior coating is not required.
- Powder Coating: Offers a smooth and durable finish.
- Epoxy: Gray epoxy lining, where applicable, for enhanced protection.
- FDA or NSF Coating: Compliant with FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water applications (custom part number required).
Additional Specifications:
- Customization: Tailored configurations available for specific project needs.
- Compliance: Meets industry standards for food-grade and potable water applications.
Applications:
The A10038 pressure tank is ideal for use in HVAC, plumbing, and food processing industries, ensuring reliable performance in a compact and efficient design.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
