- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 200
- Call
- 200
- 30
- 72
- 704

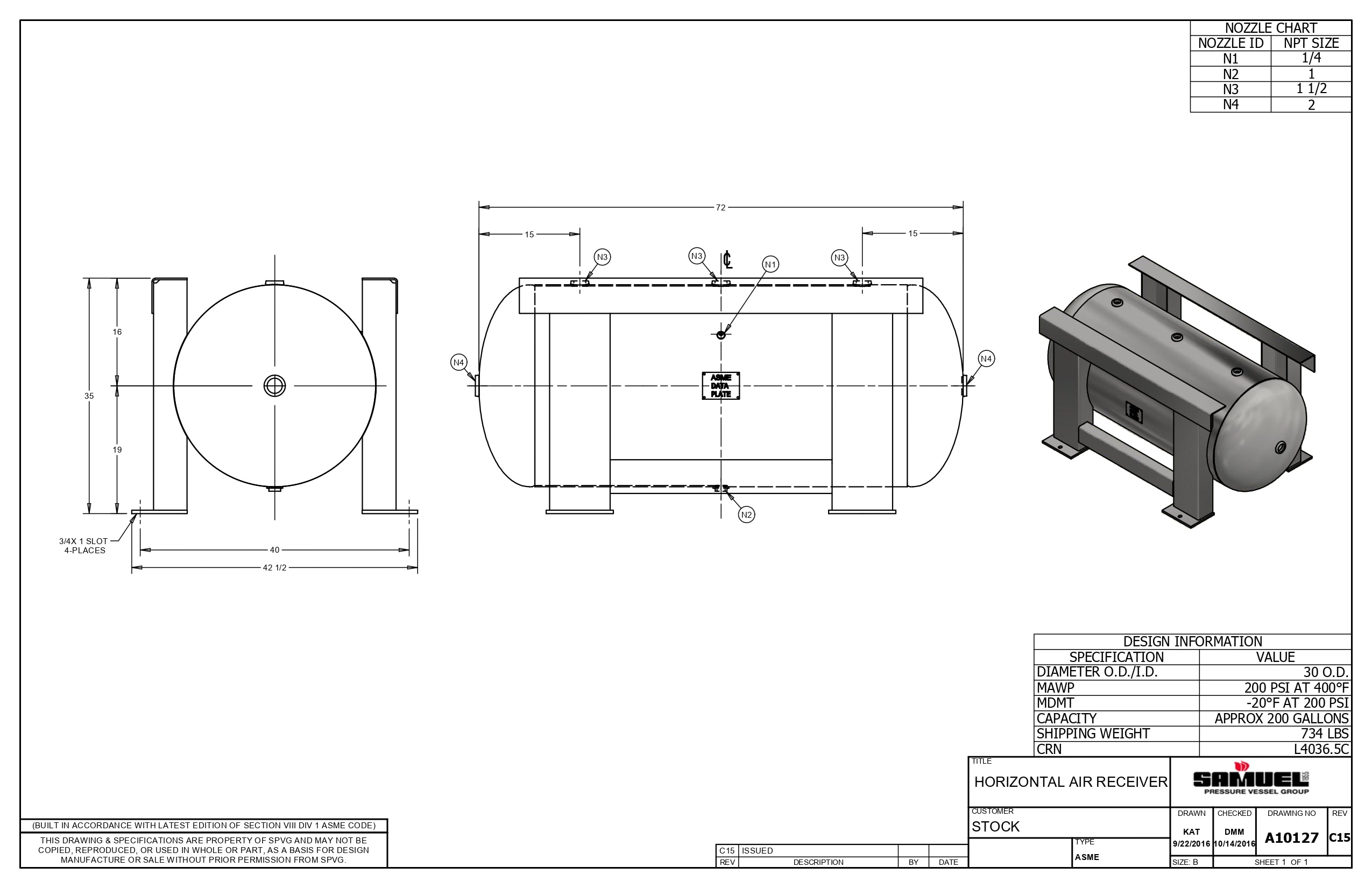

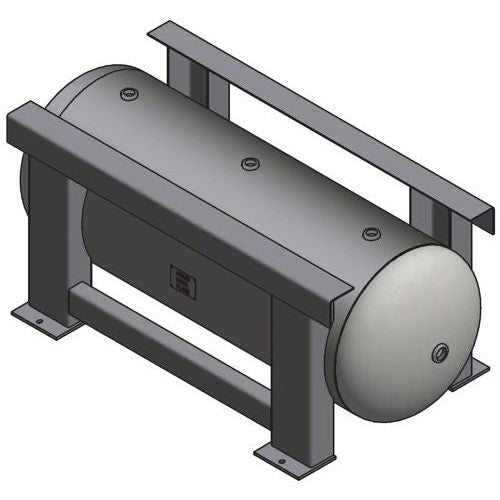

A10127 Horizontal Pressure Tank
The A10127 horizontal pressure tank is engineered for efficiency, durability, and versatility, making it an excellent choice for various industrial and commercial applications. Its robust design ensures reliable performance in demanding environments.
Key Features:
- Capacity: 200 gallons
- Dimensions: Diameter - 30 inches, Length - 72 inches
- Pressure Rating: 200 PSI
- Weight: 704 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, or Blue (RAL 5015) for enhanced durability.
- Enamel Coating: Offers durability in Gray, White, Black, or Blue finishes.
- Galvanized Finish: High corrosion resistance, ideal for harsh environments.
Interior Coating Options:
- Unpainted: Suitable for applications not requiring interior coatings.
- Powder Coating: Provides a smooth, durable finish.
- Epoxy Lining: Available in Gray for superior interior protection.
- FDA or NSF Coating: Meets FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water use (requires custom part number).
Additional Specifications:
- Custom Options: Fully customizable to meet specific operational requirements.
- Compliance: Designed to meet industry standards for food and potable water applications.
Applications: The A10127 tank is ideal for industries such as HVAC, water treatment, food processing, and more. Its flexible coating options and reliable construction make it a versatile solution for operational efficiency and storage needs.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 200
- Lead Time
- Call
- PSI
- 200
- Diameter (in)
- 30
- Length (in)
- 72
- Weight (lbs)
- 704
A10127 Horizontal Pressure Tank
The A10127 horizontal pressure tank is engineered for efficiency, durability, and versatility, making it an excellent choice for various industrial and commercial applications. Its robust design ensures reliable performance in demanding environments.
Key Features:
- Capacity: 200 gallons
- Dimensions: Diameter - 30 inches, Length - 72 inches
- Pressure Rating: 200 PSI
- Weight: 704 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, or Blue (RAL 5015) for enhanced durability.
- Enamel Coating: Offers durability in Gray, White, Black, or Blue finishes.
- Galvanized Finish: High corrosion resistance, ideal for harsh environments.
Interior Coating Options:
- Unpainted: Suitable for applications not requiring interior coatings.
- Powder Coating: Provides a smooth, durable finish.
- Epoxy Lining: Available in Gray for superior interior protection.
- FDA or NSF Coating: Meets FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water use (requires custom part number).
Additional Specifications:
- Custom Options: Fully customizable to meet specific operational requirements.
- Compliance: Designed to meet industry standards for food and potable water applications.
Applications: The A10127 tank is ideal for industries such as HVAC, water treatment, food processing, and more. Its flexible coating options and reliable construction make it a versatile solution for operational efficiency and storage needs.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
