A10128

A10128

Color
* Recommend selecting matching colors for both interior and exterior paints.

Exterior

Standard primer

Exterior Color: Gray

Interior

Unpainted

Interior Color: Gray

* Recommend selecting matching colors for both interior and exterior paints.
Color
* Recommend selecting matching colors for both interior and exterior paints.
View full details

Recommended Attachments

  • Safety Relief Valve & Pressure Gauge Kit

    240/MCTK-SF50-200
  • Electronic Drain Valve

    MCDV25

Need a Full System? Find a Distributor

  • Capacity (gal)
  • Lead Time
  • PSI
  • Diameter (in)
  • Length (in)
  • Weight (lbs)
  • 240
  • Call
  • 200
  • 30
  • 84
  • 759

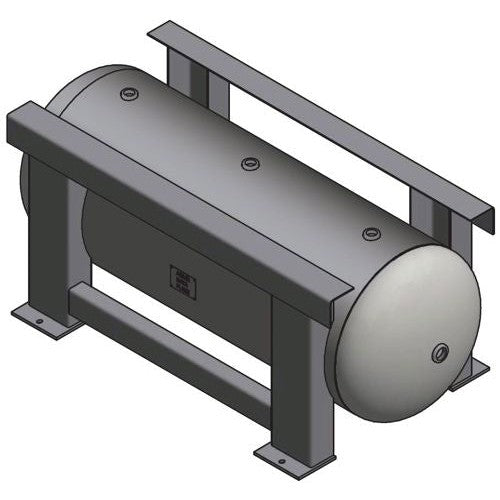

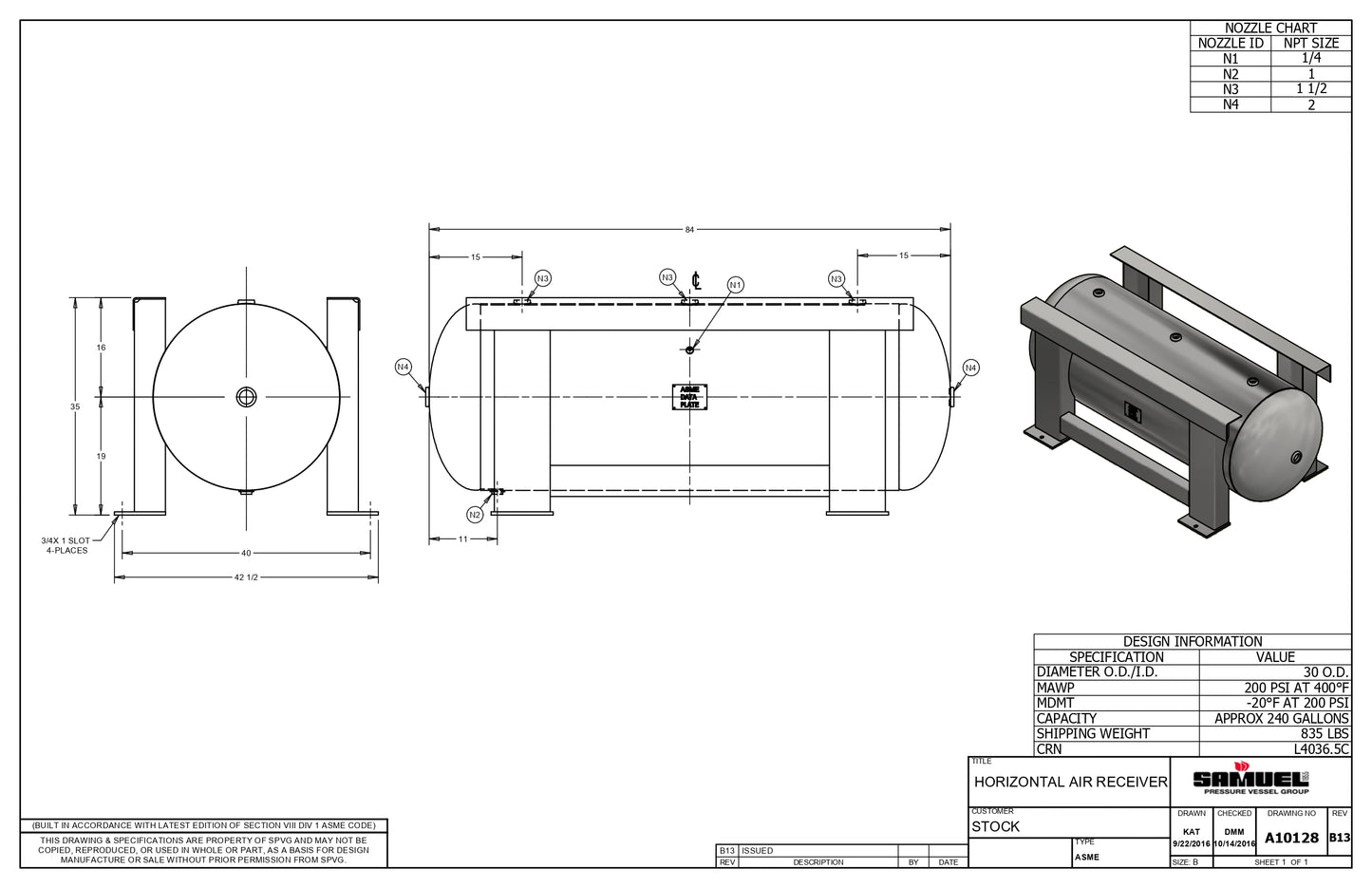

A10128 Horizontal Pressure Tank

The A10128 horizontal pressure tank is a robust and compact storage solution, engineered for efficient operation in industrial and commercial applications. Its durable design ensures long-lasting performance while providing flexibility for various configurations.

Key Features:

  • Capacity: 240 gallons
  • Dimensions: Diameter - 30 inches, Length - 84 inches
  • Pressure Rating: 200 PSI
  • Weight: 759 lbs

Exterior Coating Options:

  • Standard Primer: Universal water-based Alkyd enamel for foundational protection.
  • Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability.
  • Enamel Coating: Adds a resilient finish, available in Gray, White, Black, and Blue.
  • Galvanized Finish: Ensures superior corrosion resistance for challenging environments.

Interior Coating Options:

  • Unpainted: Suitable for applications where interior coating is unnecessary.
  • Powder Coating: Provides a smooth and durable interior finish.
  • Epoxy: Gray epoxy interior, where applicable, for additional protection.
  • FDA or NSF Coating: Meets FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water applications (custom part number required).

Additional Specifications:

  • Customization: Options available for tailored configurations and specialized applications.
  • Compliance: Designed to meet food-grade and potable water application standards.

Applications:

The A10128 pressure tank is an ideal choice for HVAC, plumbing, and food processing industries, delivering reliable performance in a compact and efficient design.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
  • Capacity (gal)
  • 240
  • Lead Time
  • Call
  • PSI
  • 200
  • Diameter (in)
  • 30
  • Length (in)
  • 84
  • Weight (lbs)
  • 759

A10128 Horizontal Pressure Tank

The A10128 horizontal pressure tank is a robust and compact storage solution, engineered for efficient operation in industrial and commercial applications. Its durable design ensures long-lasting performance while providing flexibility for various configurations.

Key Features:

  • Capacity: 240 gallons
  • Dimensions: Diameter - 30 inches, Length - 84 inches
  • Pressure Rating: 200 PSI
  • Weight: 759 lbs

Exterior Coating Options:

  • Standard Primer: Universal water-based Alkyd enamel for foundational protection.
  • Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability.
  • Enamel Coating: Adds a resilient finish, available in Gray, White, Black, and Blue.
  • Galvanized Finish: Ensures superior corrosion resistance for challenging environments.

Interior Coating Options:

  • Unpainted: Suitable for applications where interior coating is unnecessary.
  • Powder Coating: Provides a smooth and durable interior finish.
  • Epoxy: Gray epoxy interior, where applicable, for additional protection.
  • FDA or NSF Coating: Meets FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water applications (custom part number required).

Additional Specifications:

  • Customization: Options available for tailored configurations and specialized applications.
  • Compliance: Designed to meet food-grade and potable water application standards.

Applications:

The A10128 pressure tank is an ideal choice for HVAC, plumbing, and food processing industries, delivering reliable performance in a compact and efficient design.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
