- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 200
- Call
- 200
- 30
- 72
- 684

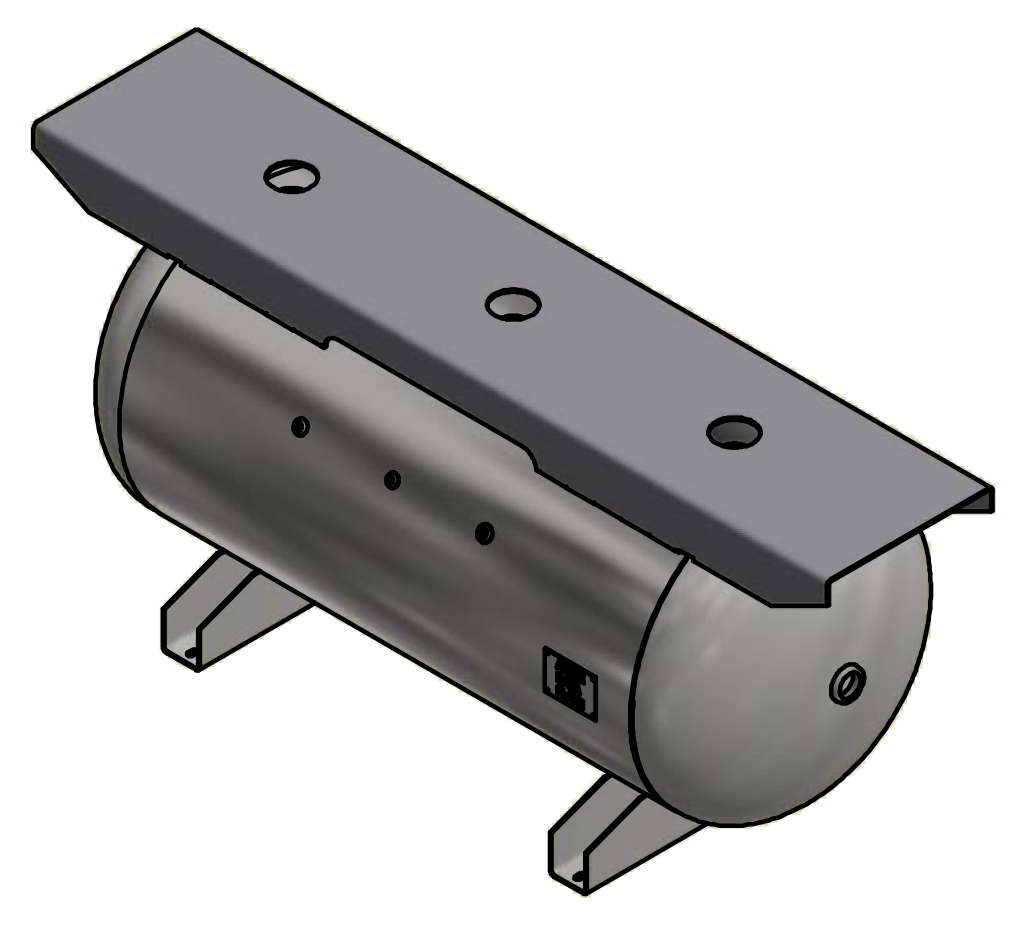

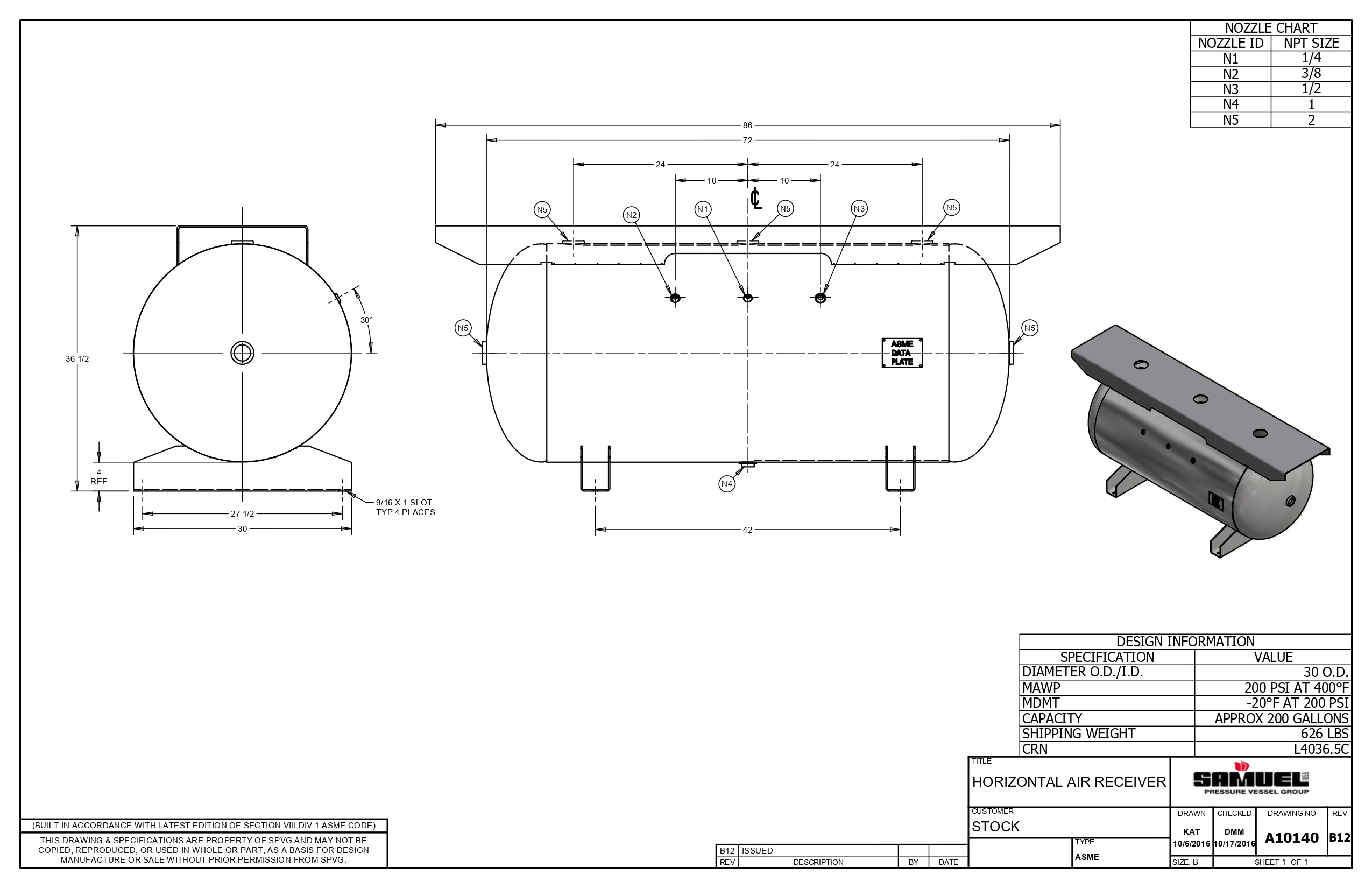

A10140 Horizontal Pressure Tank
The A10140 horizontal pressure tank is engineered for reliable and versatile performance across industrial and commercial applications. With a durable design and customizable options, this tank is built to meet your operational requirements.
Key Features:
- Capacity: 200 gallons
- Dimensions: Diameter - 30 inches, Length - 72 inches
- Pressure Rating: 200 PSI
- Weight: 684 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel providing excellent foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability and corrosion resistance.
- Enamel Coating: Durable enamel available in Gray, White, Black, or Blue.
- Galvanized Finish: Ideal for high-corrosion environments.
Interior Coating Options:
- Unpainted: Suitable for applications not requiring interior coatings.
- Powder Coating: Adds a smooth, durable finish.
- Epoxy Lining: Gray epoxy available for enhanced interior protection.
- FDA or NSF Coating: Compliant with FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water use (custom part number required).
Additional Specifications:
- Custom Options: Fully customizable to meet specific operational needs.
- Compliance: Meets industry standards for food and potable water applications.
Applications:
The A10140 tank is ideal for industries such as HVAC, plumbing, food processing, and more. Its robust design and flexible coating options ensure efficient storage and compatibility with various operational requirements.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 200
- Lead Time
- Call
- PSI
- 200
- Diameter (in)
- 30
- Length (in)
- 72
- Weight (lbs)
- 684
A10140 Horizontal Pressure Tank
The A10140 horizontal pressure tank is engineered for reliable and versatile performance across industrial and commercial applications. With a durable design and customizable options, this tank is built to meet your operational requirements.
Key Features:
- Capacity: 200 gallons
- Dimensions: Diameter - 30 inches, Length - 72 inches
- Pressure Rating: 200 PSI
- Weight: 684 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel providing excellent foundational protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced durability and corrosion resistance.
- Enamel Coating: Durable enamel available in Gray, White, Black, or Blue.
- Galvanized Finish: Ideal for high-corrosion environments.
Interior Coating Options:
- Unpainted: Suitable for applications not requiring interior coatings.
- Powder Coating: Adds a smooth, durable finish.
- Epoxy Lining: Gray epoxy available for enhanced interior protection.
- FDA or NSF Coating: Compliant with FDA Regulation 175.300 and NSF Standard 61 for food-grade and potable water use (custom part number required).
Additional Specifications:
- Custom Options: Fully customizable to meet specific operational needs.
- Compliance: Meets industry standards for food and potable water applications.
Applications:
The A10140 tank is ideal for industries such as HVAC, plumbing, food processing, and more. Its robust design and flexible coating options ensure efficient storage and compatibility with various operational requirements.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
