- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 240
- Call
- 200
- 30
- 84
- 837

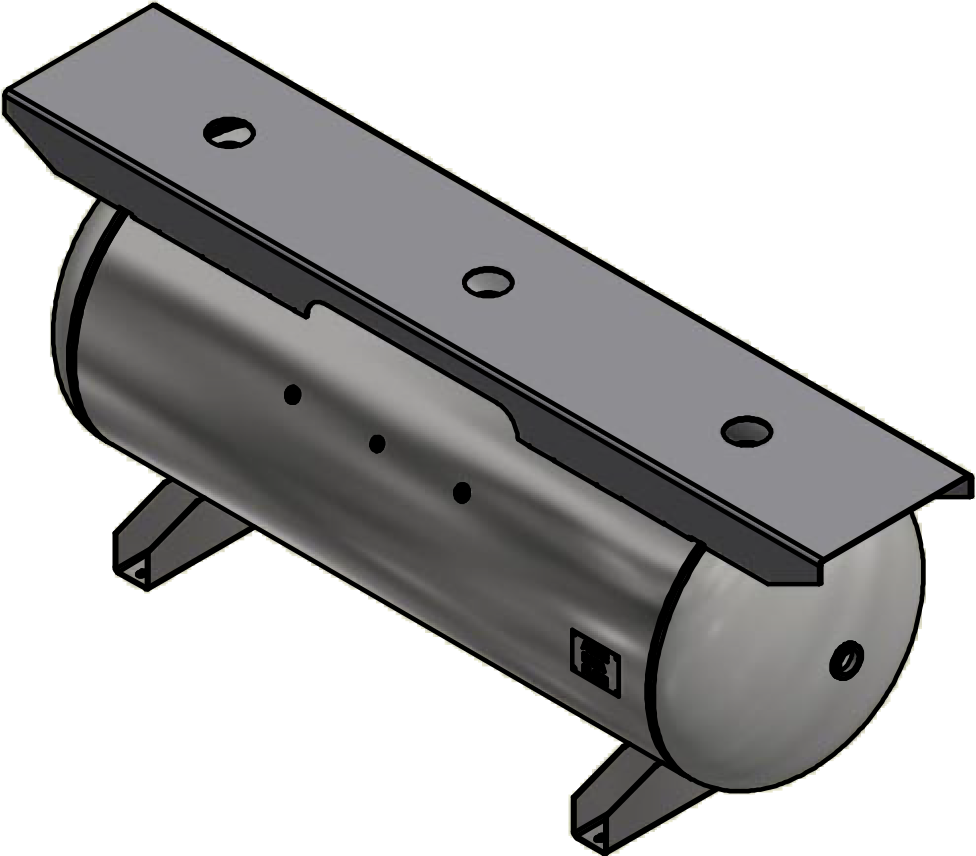

A10141 Horizontal Pressure Tank
The A10141 horizontal pressure tank is a compact and versatile solution designed for industrial and commercial applications requiring reliability and high performance. Its efficient design and durable construction ensure long-lasting functionality, even in demanding environments.
Key Features:
- Capacity: 240 gallons
- Dimensions: Diameter - 30 inches, Length - 84 inches
- Pressure Rating: 200 PSI
- Weight: 837 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for standard protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced resilience.
- Enamel Coating: Provides added durability and is offered in Gray, White, Black, and Blue.
- Galvanized Finish: Ideal for superior corrosion resistance in challenging environments.
Interior Coating Options:
- Unpainted: Suitable for applications where an interior coating is not required.
- Powder Coating: Ensures a durable and smooth finish.
- Epoxy: Gray epoxy lining for additional protection, where applicable.
- FDA or NSF Coating: Approved for food-grade and potable water applications under FDA Regulation 175.300 and NSF Standard 61 (custom part number required).
Additional Specifications:
- Customization: Tailored options available for specific project requirements.
- Compliance: Designed to meet the standards for food-grade and potable water applications.
Applications:
The A10141 pressure tank is well-suited for use in HVAC, plumbing, and food processing industries, delivering dependable performance in a compact design.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 240
- Lead Time
- Call
- PSI
- 200
- Diameter (in)
- 30
- Length (in)
- 84
- Weight (lbs)
- 837
A10141 Horizontal Pressure Tank
The A10141 horizontal pressure tank is a compact and versatile solution designed for industrial and commercial applications requiring reliability and high performance. Its efficient design and durable construction ensure long-lasting functionality, even in demanding environments.
Key Features:
- Capacity: 240 gallons
- Dimensions: Diameter - 30 inches, Length - 84 inches
- Pressure Rating: 200 PSI
- Weight: 837 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for standard protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015) for enhanced resilience.
- Enamel Coating: Provides added durability and is offered in Gray, White, Black, and Blue.
- Galvanized Finish: Ideal for superior corrosion resistance in challenging environments.
Interior Coating Options:
- Unpainted: Suitable for applications where an interior coating is not required.
- Powder Coating: Ensures a durable and smooth finish.
- Epoxy: Gray epoxy lining for additional protection, where applicable.
- FDA or NSF Coating: Approved for food-grade and potable water applications under FDA Regulation 175.300 and NSF Standard 61 (custom part number required).
Additional Specifications:
- Customization: Tailored options available for specific project requirements.
- Compliance: Designed to meet the standards for food-grade and potable water applications.
Applications:
The A10141 pressure tank is well-suited for use in HVAC, plumbing, and food processing industries, delivering dependable performance in a compact design.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
