Recommended Attachments
-
Safety Relief Valve & Pressure Gauge Kit
500/MCTK-SW10-165 -
Electronic Drain Valve
MCDV25
Need a Full System? Find a Distributor
- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 400
- Call
- 165
- 36
- 93
- 696

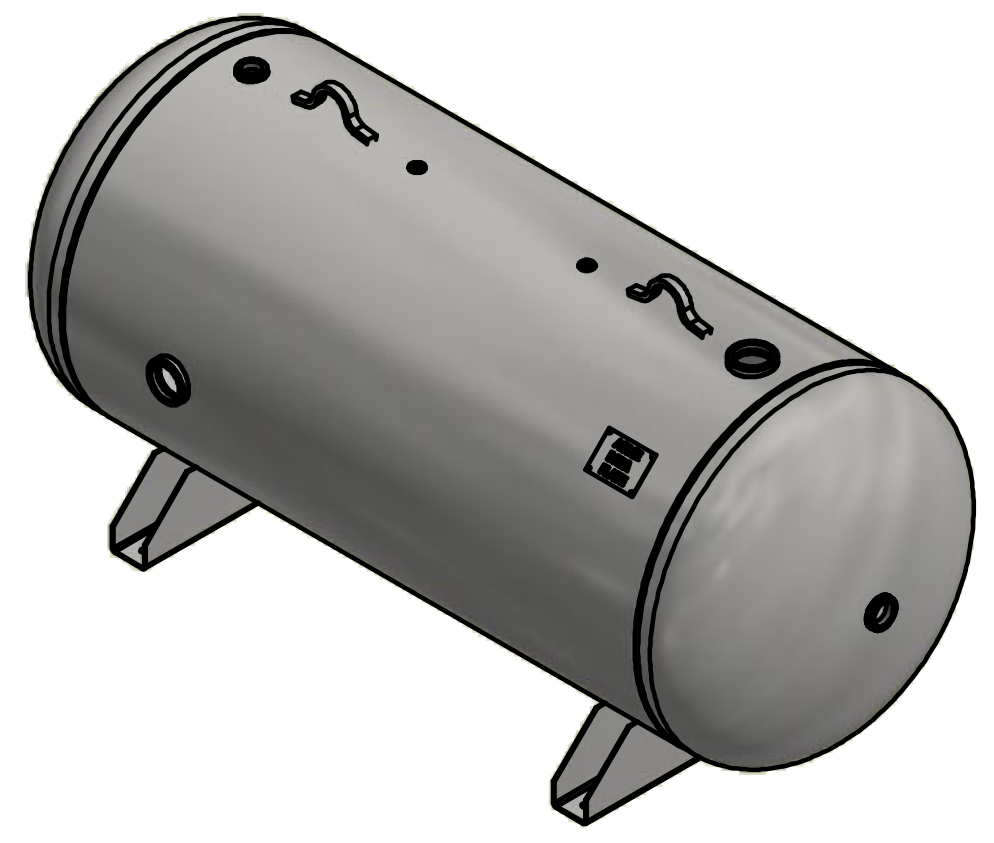

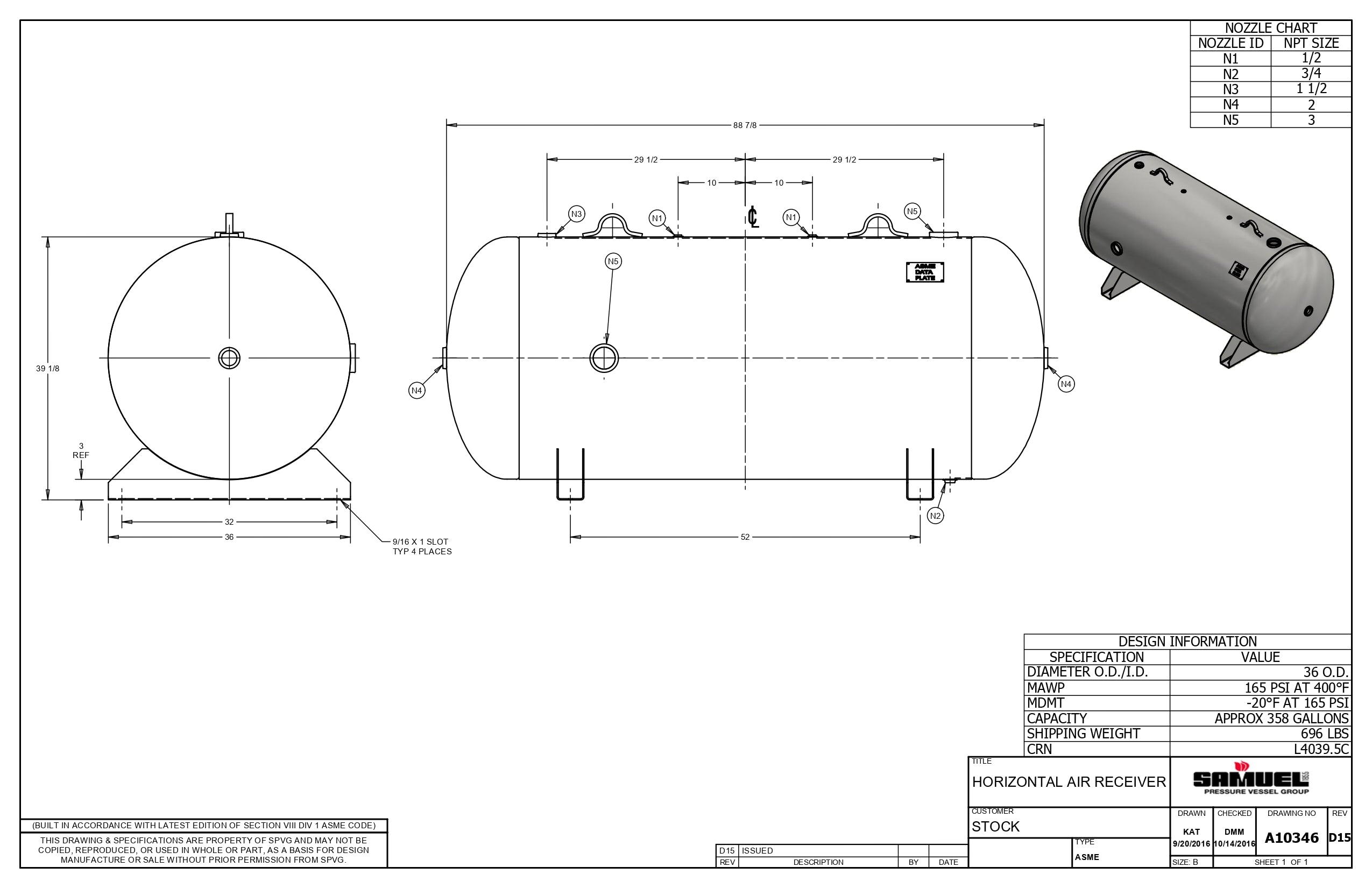

A10346 Horizontal Pressure Tank
The A10346 horizontal pressure tank is designed for efficiency and reliability in demanding industrial and commercial applications. Its robust construction ensures long-lasting performance while offering customization options to meet specific requirements.
Key Features:
- Capacity: 400 gallons
- Dimensions: Diameter - 36 inches, Length - 93 inches
- Pressure Rating: 165 PSI
- Weight: 696 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for standard protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
- Enamel Coating: Provides enhanced durability, offered in Gray, White, Black, and Blue.
- Galvanized Finish: Ideal for superior corrosion resistance in harsh environments.
Interior Coating Options:
- Unpainted: Suitable for applications where an interior coating is not required.
- Powder Coating: Ensures a smooth and durable finish.
- Epoxy: Gray epoxy interior where applicable for added corrosion protection.
- FDA or NSF Coating: Approved for food-grade and potable water applications under FDA Regulation 175.300 and NSF Standard 61 (custom part number required).
Additional Specifications:
- Customization: Tailored options available for specialized applications.
- Standards Compliance: Designed to meet the requirements for food-grade and potable water applications.
Applications:
The A10346 pressure tank is ideal for HVAC, plumbing, and food processing industries, delivering consistent and dependable performance.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 400
- Lead Time
- Call
- PSI
- 165
- Diameter (in)
- 36
- Length (in)
- 93
- Weight (lbs)
- 696
A10346 Horizontal Pressure Tank
The A10346 horizontal pressure tank is designed for efficiency and reliability in demanding industrial and commercial applications. Its robust construction ensures long-lasting performance while offering customization options to meet specific requirements.
Key Features:
- Capacity: 400 gallons
- Dimensions: Diameter - 36 inches, Length - 93 inches
- Pressure Rating: 165 PSI
- Weight: 696 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for standard protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
- Enamel Coating: Provides enhanced durability, offered in Gray, White, Black, and Blue.
- Galvanized Finish: Ideal for superior corrosion resistance in harsh environments.
Interior Coating Options:
- Unpainted: Suitable for applications where an interior coating is not required.
- Powder Coating: Ensures a smooth and durable finish.
- Epoxy: Gray epoxy interior where applicable for added corrosion protection.
- FDA or NSF Coating: Approved for food-grade and potable water applications under FDA Regulation 175.300 and NSF Standard 61 (custom part number required).
Additional Specifications:
- Customization: Tailored options available for specialized applications.
- Standards Compliance: Designed to meet the requirements for food-grade and potable water applications.
Applications:
The A10346 pressure tank is ideal for HVAC, plumbing, and food processing industries, delivering consistent and dependable performance.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
