A10348

• Capacity (gal)
• 400
• Lead Time
• Call
• PSI
• 200
• Diameter (in)
• 36
• Length (in)
• 36
• Weight (lbs)
• 1064

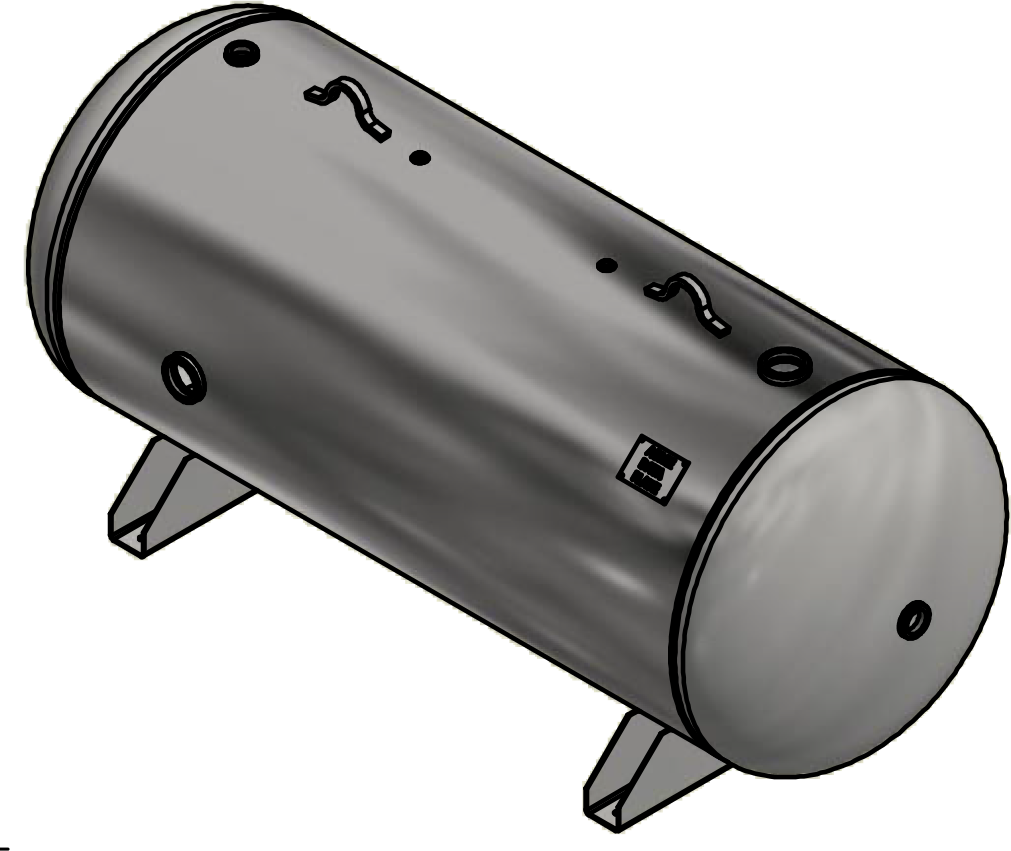

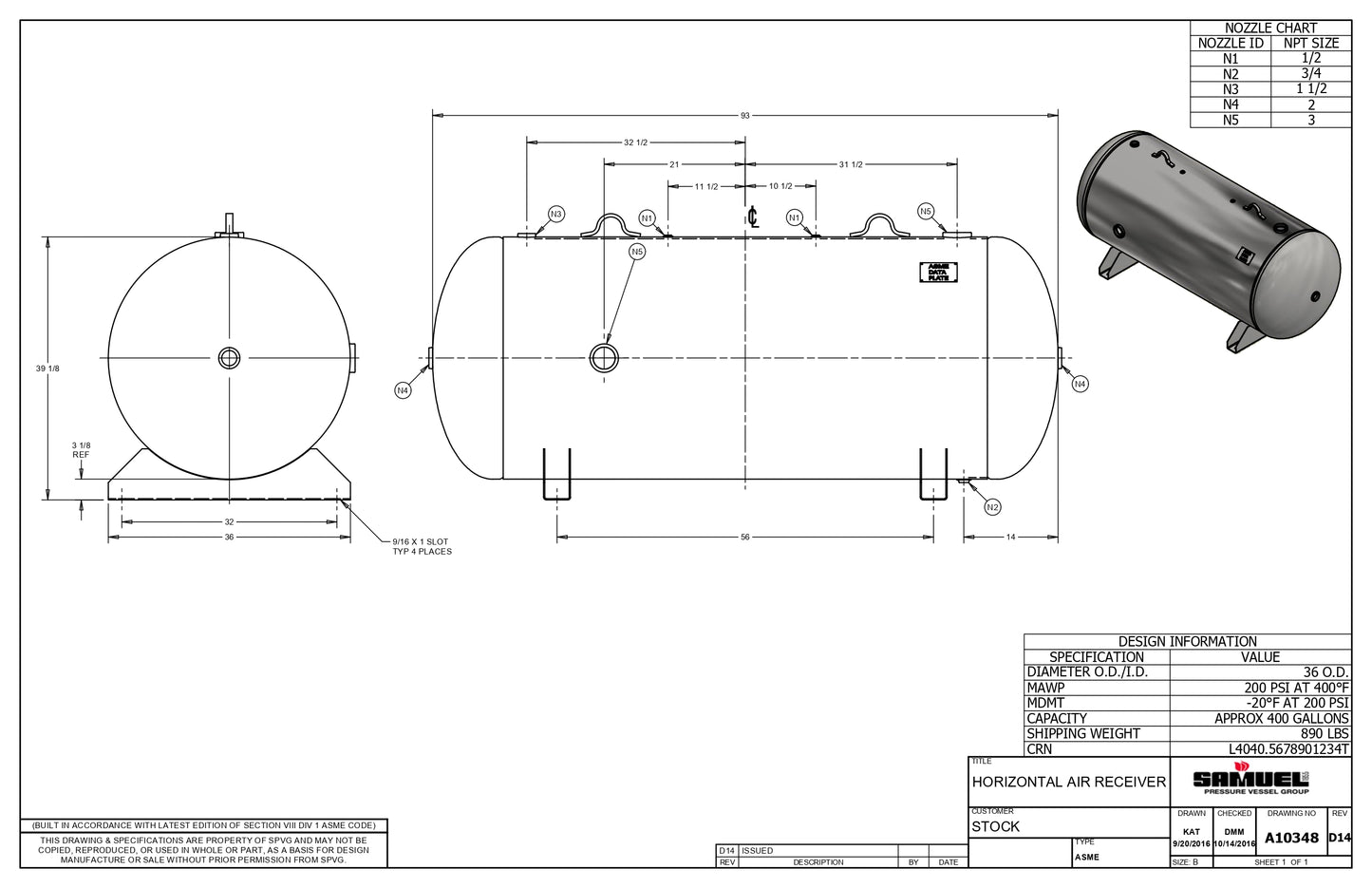

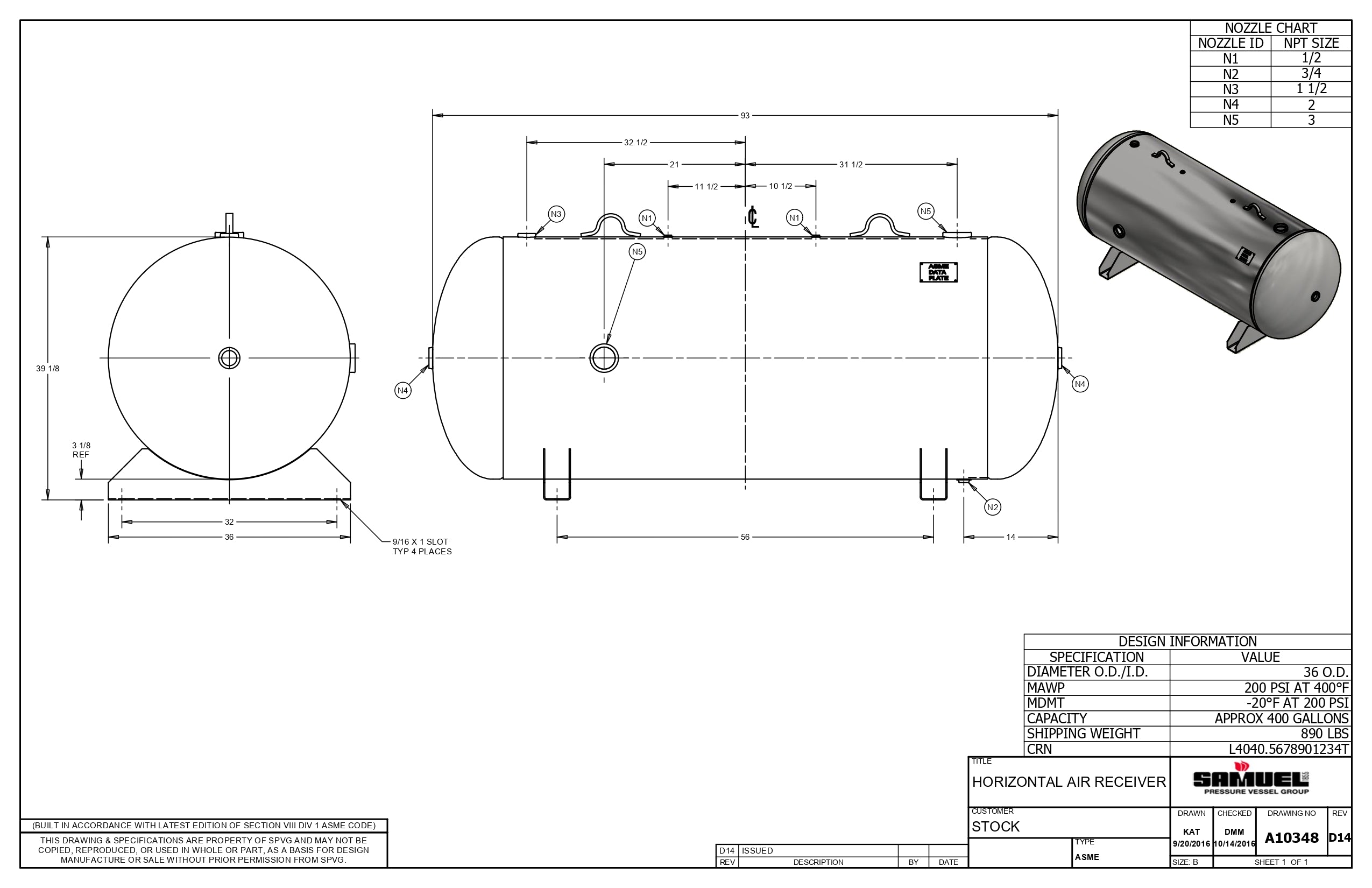

A10348 Pressure Tank

The A10348 pressure tank is built for robust performance and reliability, tailored for demanding pressurized fluid storage applications. Its large capacity and customizable features make it an excellent choice for various industrial needs.

Key Specifications:

• Capacity: 400 gallons
• Pressure Rating (PSI): 200
• Dimensions: 36-inch diameter, 36-inch length
• Weight: 1064 lbs
• Lead Time: Contact for availability

Exterior Finish Options:

• Standard Primer: Universal water-based alkyd enamel
• Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
• Enamel: Offered in gray, white, black, and blue
• Galvanized Finish: For maximum corrosion resistance

Interior Finish Options:

• Unpainted
• Powder Coating
• Epoxy Coating: Provides moisture and chemical resistance
• FDA or NSF Approved Linings: Compliant with FDA Regulation 175.300 for dry food and potable water applications (custom part number required)

Additional Features:

• Durable construction for long-term use in industrial environments
• Wide range of finishes and coatings to suit specific operational requirements
• Recommended matching of interior and exterior finishes for cohesive appearance

Applications:

This tank is ideal for use in industrial settings such as plumbing, HVAC systems, and other environments requiring large-capacity fluid pressure management.

1. Standard primer - universal water based Alkyd enamel
2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
3. Interior epoxy, where offered: gray only
4. Exterior enamel in following colors: gray, white, black, blue
5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
