A10352

A10352

Color
* Recommend selecting matching colors for both interior and exterior paints.

Exterior

Standard primer

Exterior Color: Gray

Interior

Unpainted

Interior Color: Gray

* Recommend selecting matching colors for both interior and exterior paints.
Color
* Recommend selecting matching colors for both interior and exterior paints.
View full details

Recommended Attachments

  • Safety Relief Valve & Pressure Gauge Kit

    500/MCTK-SW10-165
  • Electronic Drain Valve

    MCDV25

Need a Full System? Find a Distributor

  • Capacity (gal)
  • Lead Time
  • PSI
  • Diameter (in)
  • Length (in)
  • Weight (lbs)
  • 500
  • Call
  • 165
  • 36
  • 117
  • 944

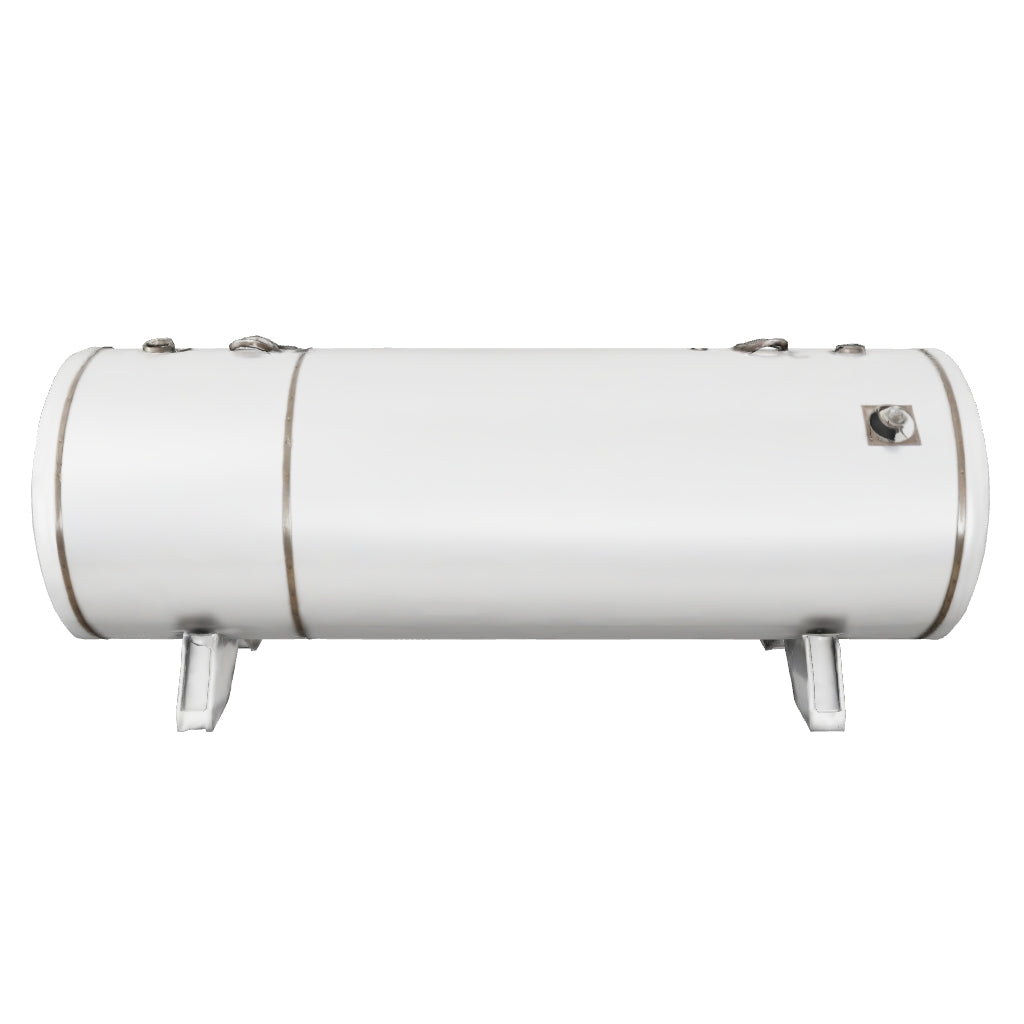

A10352 Pressure Tank

The A10352 pressure tank is designed to meet the rigorous demands of industrial applications, ensuring durability, reliability, and adaptability.

Key Specifications:

  • Capacity: 500 gallons
  • Pressure Rating (PSI): 165
  • Dimensions: 36-inch diameter, 117-inch length
  • Weight: 944 lbs

Exterior Finish Options:

  • Standard Primer: Universal water-based alkyd enamel
  • Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
  • Enamel: Options include gray, white, black, and blue
  • Galvanized Finish: For enhanced corrosion resistance

Interior Finish Options:

  • Unpainted
  • Powder Coating
  • Epoxy Coating: Ideal for chemical and moisture resistance
  • FDA or NSF Approved Linings: Meets FDA Regulation 175.300 for dry food applications and NSF Standard 61 for potable water use (custom part number required)

Additional Features:

  • Standard gray exterior epoxy finish where offered
  • Customizable lining and coating options for tailored applications
  • Robust construction suitable for various environments and industrial requirements

Applications:

Perfect for use in plumbing, HVAC systems, and other pressurized environments requiring consistent and safe fluid management.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
  • Capacity (gal)
  • 500
  • Lead Time
  • Call
  • PSI
  • 165
  • Diameter (in)
  • 36
  • Length (in)
  • 117
  • Weight (lbs)
  • 944

A10352 Pressure Tank

The A10352 pressure tank is designed to meet the rigorous demands of industrial applications, ensuring durability, reliability, and adaptability.

Key Specifications:

  • Capacity: 500 gallons
  • Pressure Rating (PSI): 165
  • Dimensions: 36-inch diameter, 117-inch length
  • Weight: 944 lbs

Exterior Finish Options:

  • Standard Primer: Universal water-based alkyd enamel
  • Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
  • Enamel: Options include gray, white, black, and blue
  • Galvanized Finish: For enhanced corrosion resistance

Interior Finish Options:

  • Unpainted
  • Powder Coating
  • Epoxy Coating: Ideal for chemical and moisture resistance
  • FDA or NSF Approved Linings: Meets FDA Regulation 175.300 for dry food applications and NSF Standard 61 for potable water use (custom part number required)

Additional Features:

  • Standard gray exterior epoxy finish where offered
  • Customizable lining and coating options for tailored applications
  • Robust construction suitable for various environments and industrial requirements

Applications:

Perfect for use in plumbing, HVAC systems, and other pressurized environments requiring consistent and safe fluid management.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
