A10354

A10354

Color
* Recommend selecting matching colors for both interior and exterior paints.

Exterior

Standard primer

Exterior Color: Gray

Interior

Unpainted

Interior Color: Gray

* Recommend selecting matching colors for both interior and exterior paints.
Color
* Recommend selecting matching colors for both interior and exterior paints.
View full details

Recommended Attachments

  • Safety Relief Valve & Pressure Gauge Kit

    500/MCTK-SW10-200
  • Electronic Drain Valve

    MCDV25

Need a Full System? Find a Distributor

  • Capacity (gal)
  • Lead Time
  • PSI
  • Diameter (in)
  • Length (in)
  • Weight (lbs)
  • 500
  • Call
  • 200
  • 36
  • 117
  • 1300

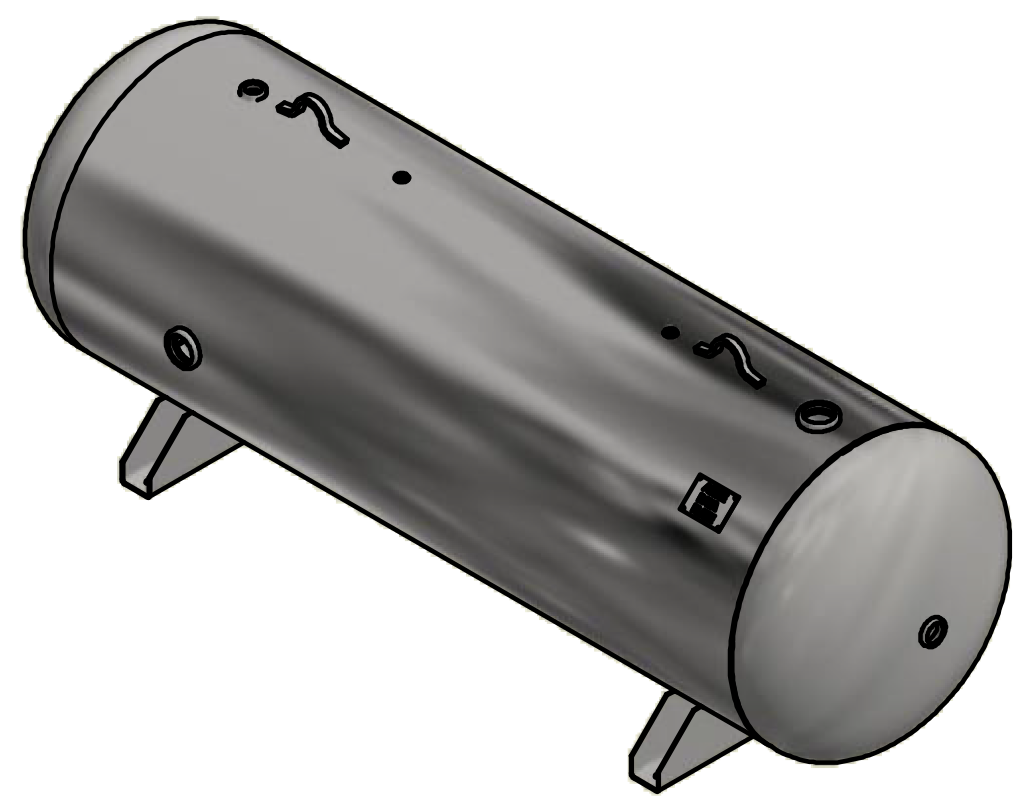

A10354 Horizontal Pressure Tank

The A10354 horizontal pressure tank is a compact and efficient solution, tailored for demanding industrial and commercial applications. Designed for durability and reliability, it provides optimal performance across various operational environments.

Key Features:

  • Capacity: 500 gallons
  • Dimensions: Diameter - 36 inches, Length - 117 inches
  • Pressure Rating: 200 PSI
  • Weight: 1300 lbs

Exterior Coating Options:

  • Standard Primer: Universal water-based Alkyd enamel for foundational protection.
  • Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
  • Enamel Coating: Offers added durability and is available in Gray, White, Black, and Blue.
  • Galvanized Finish: Provides superior resistance to corrosion, ideal for harsh environments.

Interior Coating Options:

  • Unpainted: For applications that do not require interior coating.
  • Powder Coating: Provides a smooth and robust interior finish.
  • Epoxy: Gray epoxy interior where applicable, for enhanced corrosion resistance.
  • FDA or NSF Coating: Approved for food-grade applications under FDA Regulation 175.300 and NSF Standard 61 for potable water (custom part number required).

Additional Specifications:

  • Versatility: Complies with food-grade and potable water application standards.
  • Customization: Specialized linings and coatings are available upon request.

Applications:

The A10354 pressure tank is ideal for industries such as HVAC, plumbing, and food processing, ensuring reliable and efficient performance for various operational needs.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
  • Capacity (gal)
  • 500
  • Lead Time
  • Call
  • PSI
  • 200
  • Diameter (in)
  • 36
  • Length (in)
  • 117
  • Weight (lbs)
  • 1300

A10354 Horizontal Pressure Tank

The A10354 horizontal pressure tank is a compact and efficient solution, tailored for demanding industrial and commercial applications. Designed for durability and reliability, it provides optimal performance across various operational environments.

Key Features:

  • Capacity: 500 gallons
  • Dimensions: Diameter - 36 inches, Length - 117 inches
  • Pressure Rating: 200 PSI
  • Weight: 1300 lbs

Exterior Coating Options:

  • Standard Primer: Universal water-based Alkyd enamel for foundational protection.
  • Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
  • Enamel Coating: Offers added durability and is available in Gray, White, Black, and Blue.
  • Galvanized Finish: Provides superior resistance to corrosion, ideal for harsh environments.

Interior Coating Options:

  • Unpainted: For applications that do not require interior coating.
  • Powder Coating: Provides a smooth and robust interior finish.
  • Epoxy: Gray epoxy interior where applicable, for enhanced corrosion resistance.
  • FDA or NSF Coating: Approved for food-grade applications under FDA Regulation 175.300 and NSF Standard 61 for potable water (custom part number required).

Additional Specifications:

  • Versatility: Complies with food-grade and potable water application standards.
  • Customization: Specialized linings and coatings are available upon request.

Applications:

The A10354 pressure tank is ideal for industries such as HVAC, plumbing, and food processing, ensuring reliable and efficient performance for various operational needs.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
