- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 1060
- Call
- 200
- 48
- 144
- 2390

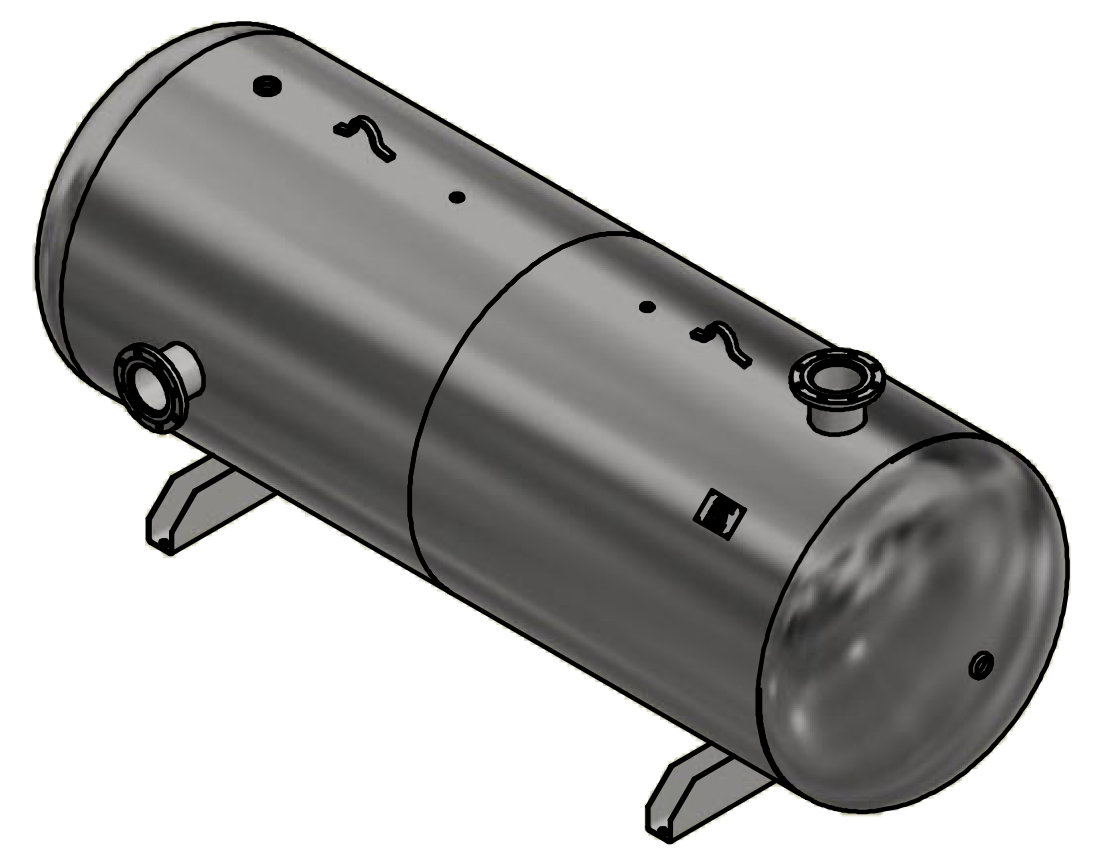

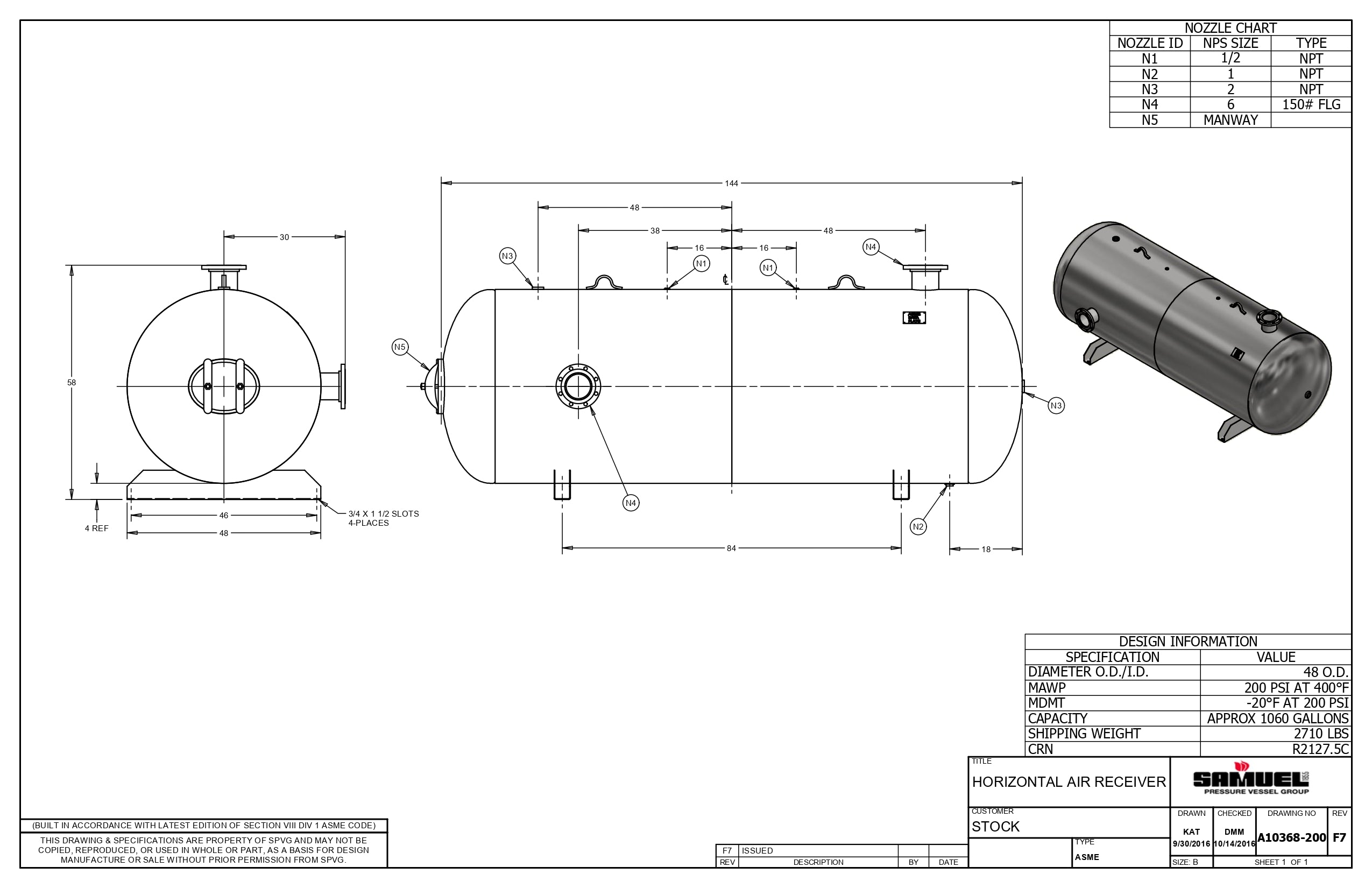

A10368-200 Horizontal Pressure Tank
The A10368-200 horizontal pressure tank offers a robust design tailored for industrial and commercial applications that demand reliability and versatility. With a compact yet high-capacity structure, this tank ensures seamless integration into your systems while meeting diverse operational requirements.
Key Features:
- Capacity: 1060 gallons
- Dimensions: Diameter - 48 inches, Length - 144 inches
- Pressure Rating: 200 PSI
- Weight: 2390 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for standard protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
- Enamel Coating: For added durability, available in Gray, White, Black, and Blue.
- Galvanized Finish: For superior corrosion resistance in challenging environments.
Interior Coating Options:
- Unpainted: For applications requiring no interior coating.
- Powder Coating: Offers a durable, smooth finish for internal surfaces.
- Epoxy: Gray epoxy lining available where applicable for enhanced protection.
- FDA or NSF Coating: Meets FDA Regulation 175.300 for food-grade applications and NSF Standard 61 for potable water (custom part number required).
Additional Specifications:
- Versatility: Designed to comply with food-grade and potable water standards for specialized applications.
- Customization: Lining options and custom coatings available to suit specific project needs.
Applications:
The A10368-200 pressure tank is ideal for industries such as HVAC, plumbing, and food processing, delivering reliable performance under high-pressure conditions.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 1060
- Lead Time
- Call
- PSI
- 200
- Diameter (in)
- 48
- Length (in)
- 144
- Weight (lbs)
- 2390
A10368-200 Horizontal Pressure Tank
The A10368-200 horizontal pressure tank offers a robust design tailored for industrial and commercial applications that demand reliability and versatility. With a compact yet high-capacity structure, this tank ensures seamless integration into your systems while meeting diverse operational requirements.
Key Features:
- Capacity: 1060 gallons
- Dimensions: Diameter - 48 inches, Length - 144 inches
- Pressure Rating: 200 PSI
- Weight: 2390 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for standard protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
- Enamel Coating: For added durability, available in Gray, White, Black, and Blue.
- Galvanized Finish: For superior corrosion resistance in challenging environments.
Interior Coating Options:
- Unpainted: For applications requiring no interior coating.
- Powder Coating: Offers a durable, smooth finish for internal surfaces.
- Epoxy: Gray epoxy lining available where applicable for enhanced protection.
- FDA or NSF Coating: Meets FDA Regulation 175.300 for food-grade applications and NSF Standard 61 for potable water (custom part number required).
Additional Specifications:
- Versatility: Designed to comply with food-grade and potable water standards for specialized applications.
- Customization: Lining options and custom coatings available to suit specific project needs.
Applications:
The A10368-200 pressure tank is ideal for industries such as HVAC, plumbing, and food processing, delivering reliable performance under high-pressure conditions.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
