Recommended Attachments
-
Safety Relief Valve & Pressure Gauge Kit
1600/MCTK-19MGG165 -
Electronic Drain Valve
MCDV25
Need a Full System? Find a Distributor
- Capacity (gal)
- Lead Time
- PSI
- Diameter (in)
- Length (in)
- Weight (lbs)
- 1550
- Call
- 165
- 54
- 166
- 3020

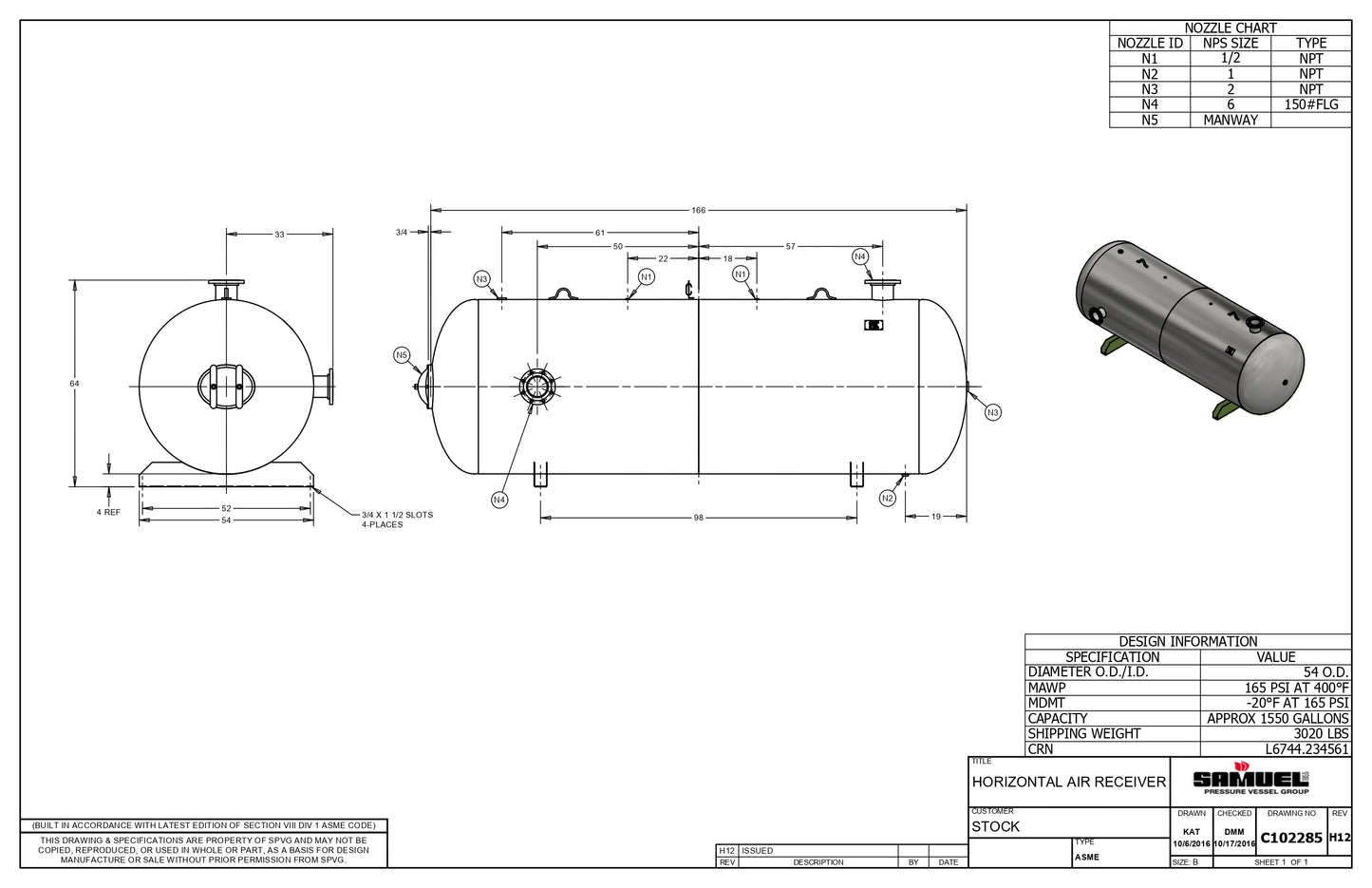

C102285 Horizontal Pressure Tank
The C102285 horizontal pressure tank is a high-capacity, durable solution designed for various industrial and commercial applications. This tank offers a robust construction and customizable coatings to meet specific needs. With a capacity of 1550 gallons, it ensures efficient performance under high-pressure environments.
Key Features:
- Capacity: 1550 gallons
- Dimensions: Diameter - 54 inches, Length - 166 inches
- Pressure Rating: 165 PSI
- Weight: 3020 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for reliable protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
- Enamel Coating: For added durability, offered in Gray, White, Black, and Blue.
- Galvanized Finish: For superior corrosion resistance.
Interior Coating Options:
- Unpainted: For applications requiring no interior coating.
- Powder: For enhanced surface finish and durability.
- Epoxy: Gray epoxy interior where applicable for corrosion resistance.
- FDA or NSF Coating: Approved for food-grade applications under FDA Regulation 175.300 and NSF Standard 61 (requires custom part number).
Additional Specifications:
- The tank complies with FDA regulations for limited wet food applications at ambient temperatures.
- Customization options are available for potable water lining and other specific requirements (custom part number required).
Applications:
Ideal for industries such as plumbing, HVAC, and food processing, the C102285 pressure tank offers reliability and flexibility for high-performance operations.
Request a Quote:
Get in touch for pricing and lead times to customize the C102285 tank to your exact specifications.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
- Capacity (gal)
- 1550
- Lead Time
- Call
- PSI
- 165
- Diameter (in)
- 54
- Length (in)
- 166
- Weight (lbs)
- 3020
C102285 Horizontal Pressure Tank
The C102285 horizontal pressure tank is a high-capacity, durable solution designed for various industrial and commercial applications. This tank offers a robust construction and customizable coatings to meet specific needs. With a capacity of 1550 gallons, it ensures efficient performance under high-pressure environments.
Key Features:
- Capacity: 1550 gallons
- Dimensions: Diameter - 54 inches, Length - 166 inches
- Pressure Rating: 165 PSI
- Weight: 3020 lbs
Exterior Coating Options:
- Standard Primer: Universal water-based Alkyd enamel for reliable protection.
- Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
- Enamel Coating: For added durability, offered in Gray, White, Black, and Blue.
- Galvanized Finish: For superior corrosion resistance.
Interior Coating Options:
- Unpainted: For applications requiring no interior coating.
- Powder: For enhanced surface finish and durability.
- Epoxy: Gray epoxy interior where applicable for corrosion resistance.
- FDA or NSF Coating: Approved for food-grade applications under FDA Regulation 175.300 and NSF Standard 61 (requires custom part number).
Additional Specifications:
- The tank complies with FDA regulations for limited wet food applications at ambient temperatures.
- Customization options are available for potable water lining and other specific requirements (custom part number required).
Applications:
Ideal for industries such as plumbing, HVAC, and food processing, the C102285 pressure tank offers reliability and flexibility for high-performance operations.
Request a Quote:
Get in touch for pricing and lead times to customize the C102285 tank to your exact specifications.
- Standard primer - universal water based Alkyd enamel
- Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
- Interior epoxy, where offered: gray only
- Exterior enamel in following colors: gray, white, black, blue
- * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
- ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
