C103084

C103084

Color
* Recommend selecting matching colors for both interior and exterior paints.

Exterior

Standard primer

Exterior Color: Gray

Interior

Unpainted

Interior Color: Gray

* Recommend selecting matching colors for both interior and exterior paints.
Color
* Recommend selecting matching colors for both interior and exterior paints.
View full details

Recommended Attachments

  • Safety Relief Valve & Pressure Gauge Kit

    700/MCTK-SW10-200
  • Electronic Drain Valve

    MCDV25

Need a Full System? Find a Distributor

  • Capacity (gal)
  • Lead Time
  • PSI
  • Diameter (in)
  • Length (in)
  • Weight (lbs)
  • 660
  • Call
  • 200
  • 42
  • 120
  • 1980

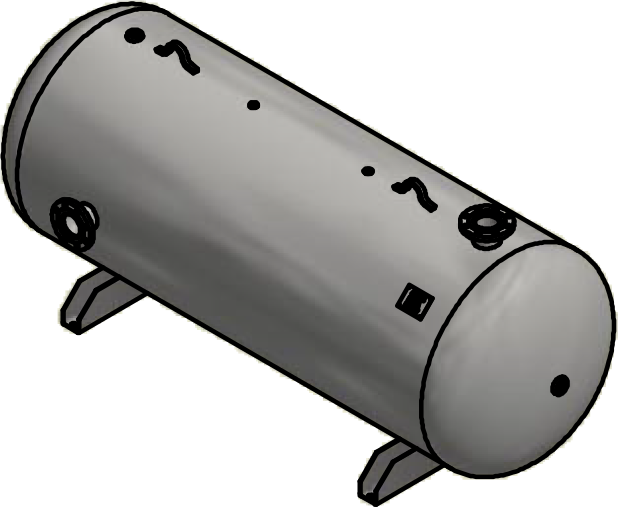

C103084 Pressure Tank

The C103084 pressure tank is designed for high-capacity fluid storage and pressurized applications. Its robust construction and versatile finish options make it ideal for heavy-duty industrial and commercial environments.

Key Specifications:

  • Capacity: 660 gallons
  • Pressure Rating (PSI): 200
  • Dimensions: 42-inch diameter, 120-inch length
  • Weight: 1980 lbs

Exterior Finish Options:

  • Standard Primer: Universal water-based alkyd enamel
  • Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
  • Enamel: Options include gray, white, black, and blue
  • Galvanized Finish: For superior resistance against corrosion

Interior Finish Options:

  • Unpainted
  • Powder Coating
  • Epoxy Coating: Offers resistance to moisture and chemicals
  • FDA or NSF Approved Linings: Meets FDA Regulation 175.300 and NSF Standard 61 for potable water and food-grade applications (custom part number required)

Additional Features:

  • High-capacity design for industrial-scale needs
  • Customizable finish options for both interior and exterior
  • Recommended matching of interior and exterior finishes for uniformity

Applications:

The C103084 is ideal for industries requiring large-scale fluid storage and pressure management, such as HVAC systems, plumbing, and heavy-duty industrial processes.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
  • Capacity (gal)
  • 660
  • Lead Time
  • Call
  • PSI
  • 200
  • Diameter (in)
  • 42
  • Length (in)
  • 120
  • Weight (lbs)
  • 1980

C103084 Pressure Tank

The C103084 pressure tank is designed for high-capacity fluid storage and pressurized applications. Its robust construction and versatile finish options make it ideal for heavy-duty industrial and commercial environments.

Key Specifications:

  • Capacity: 660 gallons
  • Pressure Rating (PSI): 200
  • Dimensions: 42-inch diameter, 120-inch length
  • Weight: 1980 lbs

Exterior Finish Options:

  • Standard Primer: Universal water-based alkyd enamel
  • Powder Coating: Available in gray (RAL 7011), white, black, or blue (RAL 5015)
  • Enamel: Options include gray, white, black, and blue
  • Galvanized Finish: For superior resistance against corrosion

Interior Finish Options:

  • Unpainted
  • Powder Coating
  • Epoxy Coating: Offers resistance to moisture and chemicals
  • FDA or NSF Approved Linings: Meets FDA Regulation 175.300 and NSF Standard 61 for potable water and food-grade applications (custom part number required)

Additional Features:

  • High-capacity design for industrial-scale needs
  • Customizable finish options for both interior and exterior
  • Recommended matching of interior and exterior finishes for uniformity

Applications:

The C103084 is ideal for industries requiring large-scale fluid storage and pressure management, such as HVAC systems, plumbing, and heavy-duty industrial processes.

  1. Standard primer - universal water based Alkyd enamel
  2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
  3. Interior epoxy, where offered: gray only
  4. Exterior enamel in following colors: gray, white, black, blue
  5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
  6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
