V10096

• Capacity (gal)
• 80
• Lead Time
• Call
• PSI
• 150
• Diameter (in)
• 20
• Length (in)
• 63
• Weight (lbs)
• 224

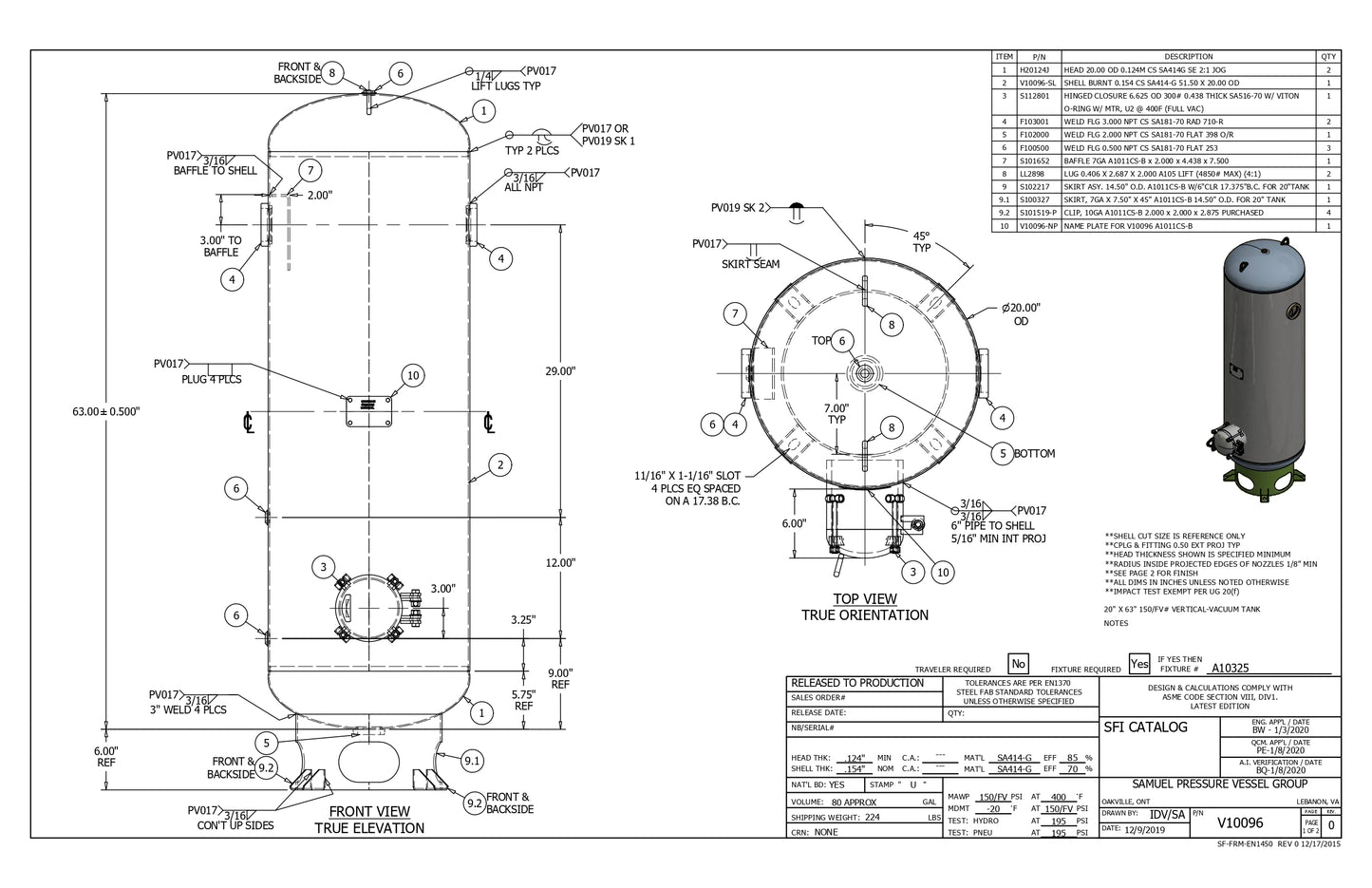

V10096 Vertical Tank

The V10096 Vertical Tank from Samuel Pressure Vessel Group is a robust and adaptable pressure vessel designed for diverse industrial applications. This vessel features sturdy construction and customizable coatings to meet specific requirements, ensuring optimal performance in various conditions.

Key Features:

• Capacity: 80 gallons
• Dimensions: Diameter - 20 inches, Length - 63 inches
• Pressure Rating: 150 PSI
• Weight: 224 lbs

Exterior Coating Options:

• Standard Primer: Universal water-based Alkyd enamel for dependable protection.
• Powder Coating: Available in Gray (RAL 7011), White, Black, and Blue (RAL 5015).
• Enamel Coating: For enhanced durability, offered in Gray, White, Black, and Blue.
• Galvanized Finish: For excellent corrosion resistance.

Interior Coating Options:

• Unpainted
• Powder
• Epoxy
• Galvanize
• FDA or NSF

Additional Specifications:

• The vessel adheres to FDA regulations for limited wet food applications at ambient temperatures.
• Customization options are available for potable water lining and other specific needs (custom part number required).

Applications:

Perfect for industries such as chemical processing, water treatment, and food processing, the V10096 Vertical Tank offers reliability and versatility for high-performance operations.

1. Standard primer - universal water based Alkyd enamel
2. Powder coating in following colors only: gray (RAL 7011), white, black, blue (RAL 5015)
3. Interior epoxy, where offered: gray only
4. Exterior enamel in following colors: gray, white, black, blue
5. * FDA lining meets FDA Regulation 175.300, Dry food at ambient temperatures, Limited wet food applications. This adder requires a custom part number.
6. ** Potable water lining NSF approved to Standard 61. This adder requires a custom part number.
